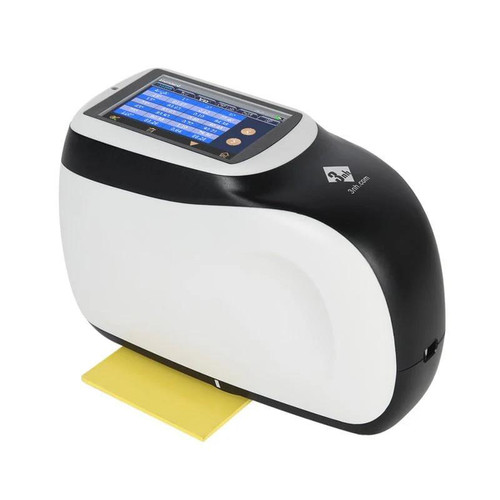

MS3006 Multi-Angle Spectrophotometer: Precision Redefined for Complex Finishes

Unlock unparalleled accuracy and consistency in color measurement with the MS3006 Multi-Angle Spectrophotometer. Engineered for the most demanding applications, this state-of-the-art instrument is specifically designed to master the intricate challenges of metallic, pearlescent, and other sophisticated special-effect finishes. Say goodbye to guesswork and hello to exact color matching across every product line.

Unrivaled Accuracy for Challenging Colors The MS3006 stands out with its industrial-grade Microcontroller Unit (MCU) and a unique configuration of six measurement angles (45as-15°, 45as15°, 45as25°, 45as45°, 45as75°, 45as110°). This advanced multi-angle capability is crucial for accurately capturing how light interacts with complex pigments, ensuring that color variations are precisely measured under diverse viewing conditions. Whether dealing with dynamic automotive paints or iridescent cosmetics, the MS3006 delivers consistent, reliable results that are impossible with conventional spectrophotometers.

Mastering Special-Effect Finishes Beyond standard color, the MS3006 delves into the nuances of special effects. Its advanced optical system ensures exceptional repeatability in quantifying critical parameters such as Sparkle Grade (SG), which measures the intensity of light reflection; Diffuse Coarseness (DC), indicating the perceived graininess of a finish; and Color Variation (CV), analyzing how color shifts with viewing angle. This detailed effect measurement discrimination empowers manufacturers to achieve precise quality inspection and maintain brand consistency across their product portfolios.

Designed for Precision and Ease of Use The MS3006 doesn't just deliver technical excellence; it offers a superior user experience.

• Intuitive Touchscreen Display: A vivid 3.5-inch TFT color LCD with a capacitive touchscreen provides comprehensive data for all measurement angles, including spectrograms, chromaticity values, color differences, and pass/fail results, streamlining analysis.
• High-Resolution Sensor & Lighting: A 256-element double-array CMOS sensor ensures high speed, accuracy, and stability. Paired with a full-spectrum LED light source with blue enhancement and innovative concave grating technology, it delivers higher spectral resolution and covers a broad wavelength range (400nm-700nm) with low maintenance costs.
• Effortless Sample Positioning: A built-in color camera preview allows for precise positioning of the measured area, even on curved or irregularly shaped surfaces, eliminating measurement errors.
• Ergonomic Design: Comfortable to hold and operate, the MS3006 promotes efficiency and reduces user fatigue during extended use.

Versatile Application and Robust Performance This indispensable tool supports multiple color spaces (CIE LAB, XYZ, Yxy, LCh) and a wide array of illuminants (D65, A, C, D50, D55, D75, F1-F12), making it adaptable to global industry standards and diverse application needs. It seamlessly integrates into quality control workflows, offering quick measurement times (approx. 1 second per angle, 6 seconds for all six angles) and robust data storage for 1000 standards and 4000 samples.

Compliant with major international standards including ASTM D 2244, E 308, E 1164, E 2194, E2539, DIN 5033, 5036, 6174, 6175-1, 6175-2; ISO 7724, 11664-4, and SAE J 1545, the MS3006 ensures your measurements meet global benchmarks.

Key Features at a Glance:

• Multi-angle measurement: Six illumination sources and one receiver capture light at critical angles.
• Effect measurement discrimination: Accurately quantifies Sparkle Grade (SG), Diffuse Coarseness (DC), and Color Variation (CV).
• Advanced Sensor & Optics: 256-element double-array CMOS sensor and concave grating for superior resolution and stability.
• Full spectrum LED light source: Long-lasting and consistent, with blue enhancement.
• Color camera preview: For precise targeting on any surface.
• Ergonomic and intuitive: User-friendly design with a touchscreen interface.
• Extensive Connectivity: USB and Bluetooth 5.0 for seamless data transfer.
• Impressive Battery Life: Lithium-ion battery provides 6000 continuous tests on a single charge.

Detailed Specifications:

• Model: MS3006
• Measurement Geometry: 6 illumination sources, 1 receiver
• Measure Angle: 45° Receiver: 45as-15°, 45as15°, 45as25°, 45as45°, 45as75°, 45as110°
• Standards Conformance: ASTM D 2244, E 308, E 1164, E 2194, E2539, DIN 5033, 5036, 6174, 6175-1,6175-2; ISO 7724, 11664-4, SAE J 1545
• Application: Accurate and consistent color measurement for metallic, pearlescent, and special effect products.
• Light Source: Full spectrum LED with blue enhancement
• Lamp Life: 5 years, 3 million measurements
• Spectrophotometric Mode: Concave Grating
• Sensor: 256 Image Element Double Array CMOS Image Sensor
• Wavelength Range: 400nm-700nm
• Wavelength Interval: 10nm
• Measurement Range: 0~600%
• Semiband Width: 10nm
• Measuring Aperture: Illumination size Φ23mm / Measuring spot 9X12mm (Customized: Illumination size Φ10mm / Measuring spot 6X8mm)
• Color Space: CIE LAB, XYZ, Yxy, LCh, βxy, DIN Lab99
• Color Difference Formula: ΔE*ab, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00, DINΔE99, ΔE DIN6175
• Other Colorimetric Index: Flop Index, Int-Em
• Observer Angle: 2°/10°
• Illuminant: D65, A, C, D50, D55, D75, F1, F2(CWF), F3, F4, F5, F6, F7(DLF), F8, F9, F10(TPL5), F11(TL84), F12(TL83/U30)
• Display: Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset, Color simulation, Sample effect value, Effect difference value
• Measuring Time: Approx. 1 second per angle / Approx. 6 seconds for all angles
• Repeatability: Spectral reflectance: Standard deviation within 0.08%; Chromaticity value: ΔE*ab 0.03
• Reproducibility: ΔE*<0.10 (avg on gray tile of BCRA), ΔE*<0.25 (avg on color BCRA)
• Inter-Instrument Error: 0.2ΔE*00 (avg on reference Series II BCRA tile set)
• Effect Parameters: Sparkle Grade (SG), Diffuse Coarseness (DC), Color Variation (CV)
• Effect Measurement: 6 angles Sparkle Grade(SG),Color Variation(CV):15as-45°,15as-30°,15as-15°,15as15°,15as45°,15as80°; 15d Diffuse coarseness(DC)
• Effect Repeatability: Sparkle Grade (SG) Short-term repeatability: 0.12%; Diffuse coarseness (DC) Short-term repeatability: 0.09%
• Effect Reproducibility: Sparkle Grade (SG) Reproducibility: 1.9%; Diffuse coarseness (DC) Reproducibility: 1.4%
• Trigger mode: Pressure sensing, button, software
• Measuring Mode: Single, average (1-99), continuous (1-99)
• Locating Mode: Color camera preview
• Dimension: L*W*H=195X83X128mm
• Weight: About 1Kg
• Power: Lithium-ion battery, 3.7V, 5000mAh, 6000 tests within 8 hours full charge
• Display: 3.5-inch TFT color LCD, Capacitive Touch Screen
• Interface: USB, Bluetooth 5.0
• Data Storage: 1000 Standards, 4000 Samples
• Language: Simplified Chinese, Traditional Chinese, English
• Operating Environment: 10℃ to 50℃, humidity ≤ 85%, no condensation
• Storage Environment: -20℃ to 50℃, humidity ≤ 85%, no condensation
• Calibration: Built-in white board parameters, external white board, black cavity
• Calibration Interval: 4 hours, 8 hours, 24 hours, Startup calibration
• Standard accessories: Power Adapter, USB Cable, User Guide, PC Software (download from official website), Calibration Board, black light trap, Protective cap, wristband
• Optional Accessory: Micro-printer
