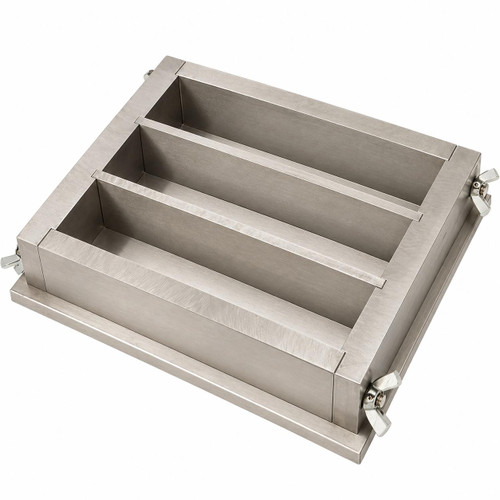

Mortar Prism Molds: Cement Prism Mold for Volume Change Tests, 1.6in x 1.6in x 6.3in, 3-gang
Single Prism Mold forms 10in long prism test bars. Testing applications include alkali reactivity, expansion, volume, length and linear change. Also used with a Length Comparator to measure Portland cement paste, mortar and concrete prism samples. These are often called mortar prism molds.
The mold has a base plate, removable partitions and end plates made of corrosion resistant steel to provide the 10in (254mm) length between ends of HM-268 Gauge Studs cast on ends of bars. Dimensions from outside end of Gauge Studs for Mortar Bars are 11.625in (296mm) with 3x3in (76x76mm) specimen cross-section.
Description:
-
Corrosion resistant steel
-
For testing various types of concrete materials
Includes:
-
Single Prism Mold, 3x3x10in
Accessories (Sold Separately):
-
Prism Length Change Gage Studs for casting into ends of bars
Gage Studs for Mortar Bars are required for use with cement prism molds.
Meets:
ASTM C227 , ASTM C1260 , ASTM C1012/1012M , ASTM C151/151M , ASTM C157/157M , ASTM C490/490M , AASHTO R 70M/R 70 , AASHTO T 107M/T 107
Our prism molds produce 10in long cement prism specimens. Molds have removable partitions, base and end plates for easy specimen preparation and testing. Outside to outside effective gauge length of specimen including studs is 11 5/8in and molds produce 11 1/4in long cement prism specimens. Molds are made of stainless steel for durability and long life. Meets ASTM C31-98, C78-94, C192-98, C293-9.
Testing Capabilities and Applications
Our prism molds are used for: autoclave expansion of portland cement, effective gauge length change of mortar and concrete, potential alkali reactivity of cement/aggregate combinations, linear change of magnesium and oxychloride cements, volume change of cement paste. Molds meet standards: C-151, C-157, C-227, C-311, C-341, C-452, C-490, C-531, AASHTO M-210, T-107, T-160. Prism molds are used for testing cement paste, mortar and concrete specimens in a controlled environment to evaluate properties and characteristics of cementitious materials.
Benefits and Features
Our cement prism specimens:
-
Accurate and consistent results: Meets ASTM and AASHTO standards.
-
Easy to prepare cement prism specimens: Removable partitions, base and end plates.
-
Durable: Stainless steel.
-
Versatile: Autoclave expansion, effective gauge length change, potential alkali reactivity, linear change, volume change tests.
-
Meets standards: Our prism molds
Engineers and researchers can produce cement prism specimens and prism molds to get optimal performance of concrete masonry mortars in various construction applications.
