Marsh Funnel Viscometer and Cup, 1 Liter Measuring Guide

Marsh Funnel Viscometer and Cup, 1 Liter Measuring Guide

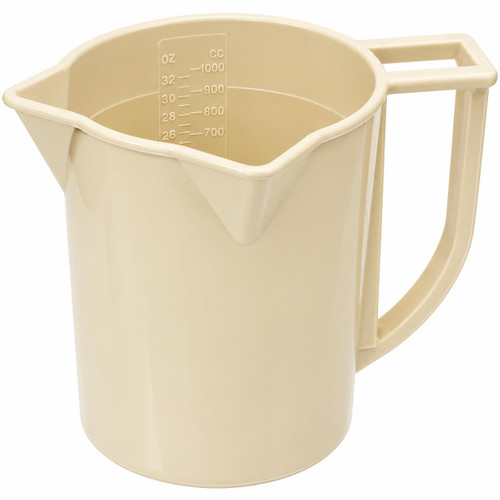

1 liter, plastic measuring cup for collecting sample from marsh funnel.

The marsh funnel viscometer with its marsh funnel cup is a tough, easy to use instrument for making quick on the spot measurements of drilling mud viscosity. It is easy for mud engineers to operate the instrument due to its rugged design. The marsh funnel viscometer cup is designed with specific capacity and orifice dimensions to ensure accurate measurements. Marsh funnel readings are only rough measurements, but frequent reporting of the marsh funnel viscosity will alert the mud engineer to any changes in the mud viscosity that may need attention. The Marsh Funnel Viscometer provides only general measurements of mud viscosity. The marsh funnel viscosity is the ratio of the speed of the mud as it goes through the outlet tube (the shear rate) to the force — the weight of the mud itself which is causing the mud to flow (the shear stress). Marsh funnel viscosity is reported as the number of seconds for one quart of mud to flow out of a full marsh funnel.

Description

The Marsh Funnel Viscometer is a tough and easy to use instrument for making quick on the spot measurements of drilling mud viscosity. It is a must have tool for engineers to monitor and control the viscosity of drilling fluids which is crucial for optimal drilling. By giving rough measurements of viscosity the Marsh Funnel Viscometer will alert the mud engineer to any changes in the drilling fluids viscosity so corrective action can be taken. This will ensure drilling can continue smoothly and efficiently with minimal downtime and problems.

Features and Benefits

• Tough and Easy to Use: The Marsh Funnel Viscometer is built to withstand the rigors of the drilling site, a must have for engineers.

• Quick On the Spot Measurements: Gives quick rough measurements of mud viscosity so you can take action now.

• Critical Tool: For monitoring and controlling drilling mud viscosity for optimal drilling.

• Flow Properties: Measures flow properties of drilling fluids, shear stress and shear rate which is important for understanding mud behavior.

• Convenient: Double spout and two scales molded into the inside of the cup, easy to use and read.

• Compatible: Works with OFITE Marsh Funnel Viscometer and other drilling fluid testingequipment.

Applications and Specifications

• Applications: For use in drilling, directional drilling and other industrial applications where drilling fluid viscosity needs to be monitored and controlled.

• Specifications: Measurement Units: Measures viscosity in fluid ounces (2-32 oz) and cubic centimeters (100-1,000 cc) for flexibility in reporting.

• 12 Mesh Screen: Has a 12 mesh screen to remove foreign matter and drill cuttings from the fluid for accurate measurements.

• Capacity: Holds up to 1500 ml (1 quart) of drilling fluid for various testing needs. The size of the Marsh Funnel Viscometer is approximately 12 inches in height and weighs around 1.5 pounds, making it portable and easy to handle.

• Standards: Complies to API 13B-1 and ISO 10414-1 for field testing of drilling fluids and EN 14117 for protection and repair of concrete structures. It is designed to outflow water at a temperature range of 70 ± 5°F (21 ± 3°C) to ensure accurate viscosity measurements.

Viscosity Measurement

Viscosity measurement is a critical part of drilling operations and the Marsh Funnel Viscometer is a widely used instrument for this purpose. The device measures the viscosity of drilling fluids, also known as viscosity, by calculating the time it takes for a known volume of fluid to flow through the outlet tube. This measurement is important in determining the flow properties of drilling fluids which can affect the overall efficiency of drilling operations. The Marsh Funnel Viscometer measures the shear rate and shear stress of the mud, gives a ratio that indicates the fluid’s resistance to flow. By using the Marsh Funnel Viscometer, engineers can quickly and easily measure the viscosity of drilling fluids, so they can identify any sudden changes in viscosity that may need attention.

Applications and Benefits

The Marsh Funnel Viscometer has many applications in the drilling industry including oil and gas exploration, drilling mud testing and cement testing. It is useful in field testing where its rugged design and ease of use makes it a perfect tool for measurements. By providing accurate and reliable measurements of fluid viscosity, the Marsh Funnel Viscometer helps engineers to optimize drilling operations, reduce costs and improve overall efficiency. It is also used in the gas industry to measure the viscosity of drilling fluids and other liquids. The benefits of using the Marsh Funnel Viscometer include accuracy, efficiency and safety, making it an essential tool for any drilling operation. It is also used to measure the consistency and flow properties of drilling fluids so better control of the drilling process and better outcome.
