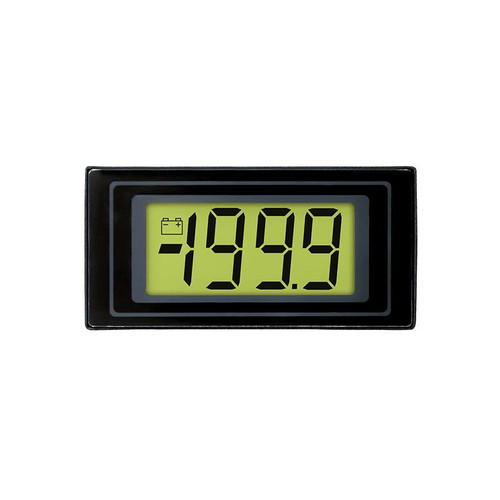

This compact panel meter includes a 3½ digit LCD with a 12.5mm (0.5") digit height, a low-profile bezel for easy mounting, and LED backlighting. It offers a 200mV DC full-scale reading, along with auto-zero and auto-polarity features. The meter can be plugged directly into a single-in-line (SIL) socket or panel-mounted using the provided snap-in bezel and window.
Specifications
Accuracy (overall error) 0.05% (typ.) ±1 count
Operating temperature 0 to 50 °C (32 to 122 °F)
Sample rate 3 samples/sec
Supply voltage (V+ to V-) 7.5 to 14 V
Supply current 30mA typical (with backlight)
