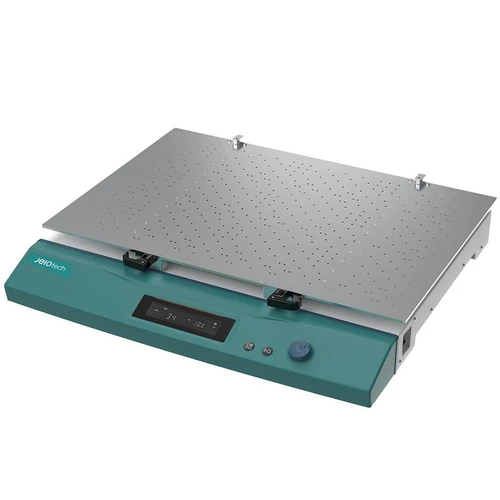

SKC-7200 Orbital Platform Shaker (50mm Orbit), 230V

SKC-7200 Orbital Platform Shaker: Powerful, Precise, and User-Friendly

Introducing the SKC-7200 Orbital Platform Shaker, an essential piece of laboratory equipment designed for high-performance and reliable operation. With a powerful shaking speed, intelligent control system, and low-profile design, this shaker is engineered to handle heavy workloads while ensuring a safe and pleasant testing environment. Its 50mm orbital motion is perfect for a wide range of applications, from cell cultures and staining to extractions and general mixing.

Unmatched Performance and Stability

• Powerful & Consistent Shaking: Equipped with a Microprocessor PID control, the SKC-7200 maintains a constant speed up to a competitive 500 rpm. Its advanced Direct Drive (DD) Brushless Motor and triple cam system deliver high torque and quiet, maintenance-free operation, ensuring smooth rotation even under heavy loads.
• Intelligent Workload Management: Our "Best effort run" function automatically adjusts the shaking speed if it detects an unbalanced load or excessive vibrations. This smart technology ensures your experiments continue running smoothly without interruption.
• Gentle Operation: The smooth start and stop function prevents chemical spills from flasks and test tubes by gradually accelerating and decelerating, protecting your valuable samples.
• Exceptional Stability: The exceptionally low-profile design (only 12 cm high) minimizes vibration and sliding, even at high speeds, providing a stable foundation for your work.

Designed for Convenience

• User-Friendly Interface: The shaker features Jeio Tech’s unique VFD display—bright, clear, and easy to read. Coupled with a durable membrane touch switch and control knob, operation is simple and intuitive.
• Efficient Sample Handling: An optional slide-type universal platform makes it easy to exchange heavy samples, reducing physical strain.
• Reproducible Processes: The platform always stops in the same position it starts, which is highly beneficial for automated dosing or sampling procedures and ensures consistency in repetitive tasks.

Advanced Safety Features

• Built-in Protection: The system includes alarms for shaking speed deviations and over-current protection to safeguard both the user and the equipment.

Technical Specifications:

Model: SKC-7200 Voltage: 230V

Shaking System:

• Control System: Microprocessor PID feedback control
• Motion Type: Orbital
• Orbit Diameter: 50 mm (2.0 inches)
• Speed Range: 30 to 500 rpm
• Speed Accuracy: ±1 rpm at 100 rpm

Dimensions & Weight:

• Platform Size (W×D): 885×520 mm (34.8×20.5 inches)
• Overall Body (W×D×H): 754.8×662×122.2 mm (29.7×26.1×4.8 inches)
• Net Weight: 75 kg (165.4 lbs)

Electrical Requirements:

• 230V, 50/60Hz: 0.4A

A variety of flask clamps, test tube racks, and other accessories are available to customize the platform for your specific application needs.
