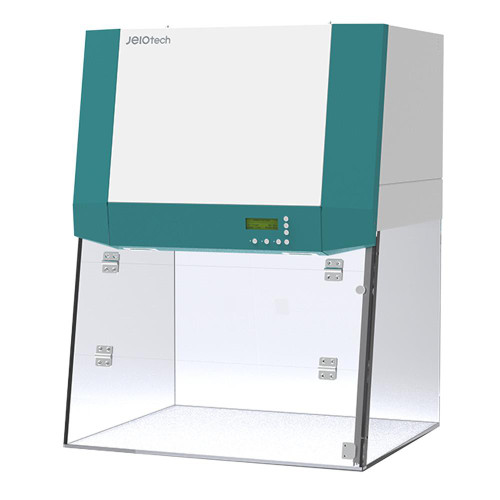

Lab Companion PW-01 PCR Workstation

The Lab Companion PW-01 PCR Workstation is specially designed to minimize the sample contamination during PCR applications by combining ISO Class 4 (US Class 10) clean air environment with UV light sterilization capability.

Filtration Features

• ISO Class 4 (US Class 10) HEPA filter for optimal protection against cross-contamination
• Neoprene gaskets ensuring that the HEPA filter is airtight to the body unit
• Durable HEPA filter (The HEPA filters life span depending on the test room conditions has a life span of 3 years.)
• High-quality polyester fiber pre-filter (with minimal pressure loss and 85% arrestance on the A.F.I. test) for trapping larger particles and increasing the life of the main HEPA filter
• Convenient change of filter cartridges by opening the upper front cover
• Adjustable digital blower speed switch located in the front with use of large capacity blower is adopted into the equipment

Safety Features

• Built-in safety interlock switch which shuts off the UV light automatically when the door is opened
• UV-blocking door and side panels made of transparent acrylic resin providing clear inside view
• Audible alarm for protecting the samples against UV over-exposure
• Protection against overcurrent

Constructional Features

•  Effective sterilization using a long-life 254 nm UV lamp (average life spen : 8,000 hour lifespan)
•  Anti-glare fluorescent lamp installed on the center ceiling of the workspace area minimizing shadows and relieving eye strain
•  Programmable digital UV light timer with Delayed OFF function (maximum 30 min)
•  User-friendly microprocessor-based control panel with an LCD and responsive touch buttons
•  Easy blower speed adjustment by the control panel

Specifications

• Air Flow Type: Vertical
• Max. air volume (cmh / cfm): 557 / 327
• Min. air volume (cmh / cfm): 167 / 97
• Laminar Airflow Velocity (m / s / fpm): 0.3 / 60
• Filters
• Air Cleanliness: ISO 14644-1Class 4
• HEPA Filter: Typical efficiency of 99.99% on 0.3μm (US MIL- STD -282); Micro glass fiber Media, Particle board, Aluminum separator, Neoprene gaskets
• Pre Filter: Typical efficiency of 99.99% at 0.3μm US MIL -STD -282 ; Micro glass fiber media, Particle board, AL separator, Neoprene gaskets
• Noise Level: Typically < 60 dBA at initial Blower speed
• Materials
• Work Surface: 10mm tick acrylic resin (Clear type)
• Windows (Front / Side / Back)): 8mm / 10mm tick acrylic resin (Clear type)
• Illumination
• Intensity
• FL lamp (lux): >1000
• UV Density: 165
• Capacity
• FL Lamp: 15W×1EA
• UV Lamp: 15W×1EA
• Dimension (W×D×H)
• Internal (mm / inch): 700×585×602 / 27.5×23×23.7
• Exterior (mm / inch): 720×605×964 / 28×24×38
• Weight (Body) (kg / lbs): 56.2 / 123.9
• Electrical Requirements: 120V / 60Hz / 2.2A
