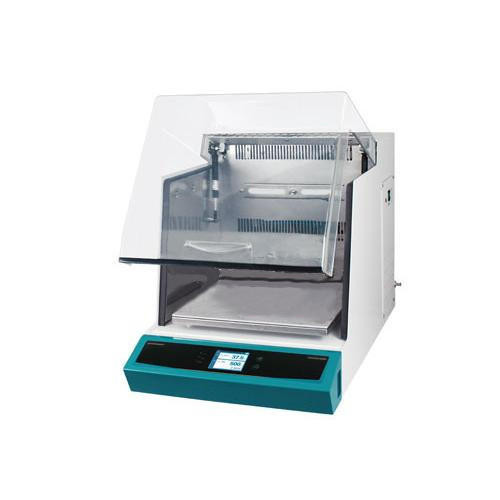

IST-3075R Benchtop Incubating Shaker, 53/1.9 (L/Cu Ft), 1 / 6 HBP

IST-3075R Benchtop Incubating Shaker: Precision Performance for Every Lab

The IST-3075R Benchtop Incubating Shaker is a versatile and compact solution designed for labs that require precise temperature control and powerful shaking performance. With a 53L (1.9 cu ft) capacity and a refrigerated system, it is ideal for a wide range of applications, including cell culture, solubility studies, and protein expression.

Key Performance Features

• Broad Temperature Range: Operates from Ambient -15°C to 80°C, allowing for both refrigerated and heated incubation.
• High-Speed Shaking: Reach speeds up to 500 rpm with a 19mm orbital motion, perfect for high-aeration demands.
• BLDC Motor Technology: Equipped with a maintenance-free brushless DC motor, ensuring smooth, quiet, and powerful operation even under heavy workloads (up to 21kg at lower speeds).
• PID Microprocessor Control: Features automatic tuning and three-point temperature calibration to maintain highly accurate and stable environments.
• Spill Prevention: The "Smooth Start" and "Smooth Stop" functions protect your samples by preventing sudden jerks and chemical splashes.

Innovative & Sustainable Design

• Eco-Friendly Cooling: Uses R-600a refrigerant, significantly reducing greenhouse gas emissions compared to traditional refrigerants.
• Superior Uniformity: A high-velocity fan combined with an air-tight silicone door seal ensures rapid thermal recovery and consistent temperature distribution.
• Clear Monitoring: The three-sided transparent acrylic lid and bright internal LED lamps allow you to observe your samples without disturbing the internal atmosphere.

Convenience & Connectivity

• Touchscreen Interface: Navigate settings easily with an intuitive LCD controller and logical menus.
• Smart Integration: Connect via LC Connected for mobile monitoring or use the built-in RS-232 and USB ports for data collection.
• Compliance Ready: Compatible with 21 CFR Part 11 (via LC DataKeeper option), making it suitable for strictly regulated GMP environments.
• Predictable Workflow: The platform always stops at its starting position, which is essential for automated dosing or sampling procedures.

Safety First

• Auto-Restart: Automatically resumes operation after power interruptions.
• Comprehensive Alarms: Visual and audible alerts for door openings, as well as temperature and speed deviations.
• Over-Temp Protection: Includes a mechanical over-temperature protection device for added peace of mind.

Technical Specifications

• Volume: 53 Liters / 1.9 cu ft
• Internal Dimensions: 410 x 410 x 320 mm (16.1 x 16.1 x 12.6")
• External Dimensions: 440 x 785 x 510 mm (17.3 x 30.9 x 20.1")
• Max Load: 14 kg at 500 rpm; 21 kg at 400 rpm
• Weight: 73 kg (160.9 lbs)
• Power: 120V, 60Hz, 10.1A

The IST-3075R combines reliability with cutting-edge technology to provide a stable, user-friendly environment for your most sensitive laboratory experiments.
