CPS-350 Microplate Shaker

CPS-350 Microplate Shaker: Precision Mixing for High-Throughput Labs

The CPS-350 Microplate Shaker is a high-performance laboratory instrument engineered for the simultaneous shaking of up to four microplates. Designed for reliability and repeatability, it is an essential tool for life science research, clinical diagnostics, and high-throughput screening. Whether you are performing ELISA, cell cultures, or protein synthesis, the CPS-350 ensures consistent results across every well.

Key Performance Features

• Microprocessor PID Control: Ensures consistent speed and stability regardless of load fluctuations.
• Broad Speed Range: Adjustable from 150 to 1,200 rpm to accommodate everything from gentle mixing to vigorous agitation.
• Precision Orbital Motion: A 3mm (0.12”) diameter orbital motion provides the ideal vortexing effect for microplate applications.
• Advanced BLDC Motor: Equipped with a maintenance-free Brushless DC motor that delivers powerful, uniform shaking while maintaining nearly silent operation.
• Sample Integrity: The smooth start-up feature prevents splashing and cross-contamination during the ramp-up phase.

User Convenience & Versatility

• Intuitive Interface: Features a bright, high-contrast Vacuum Fluorescent Display (VFD) and a touch-sensitive keypad for easy monitoring and operation.
• Precision Timing: An integrated one-touch timer allows for operations ranging from 1 minute up to nearly 100 hours.
• Environmental Compatibility: The compact, lightweight footprint is designed to fit inside cold rooms or incubators (operating temperature range typically 5°C to 40°C).
• Expanded Accessory Options: Beyond standard microplates, optional racks are available to support 1.5ml micro-tubes, as well as 15ml and 50ml conical tubes, making it a multi-purpose lab asset.

Built-in Safety & Durability

• Chemical-Resistant Design: The polypropylene main body is highly resistant to common lab chemicals and is designed for easy wipe-down cleaning.
• Smart Diagnostics: Self-diagnostic functions automatically identify and display error codes for rapid troubleshooting.
• Over-Current Protection: Integrated safety circuits prevent electrical damage to the unit.

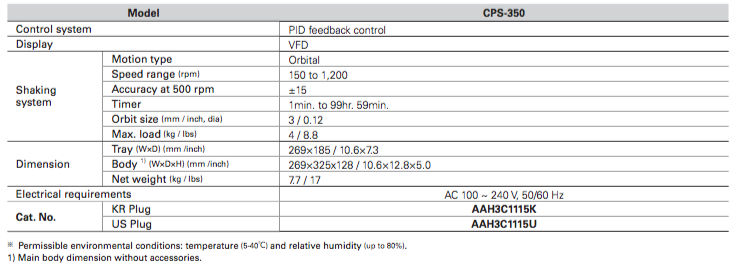

Technical Specifications

• Control System: PID Feedback Control
• Display: Vacuum Fluorescent Display (VFD)
• Motion Type: Orbital (3mm diameter)
• Speed Range: 150 to 1,200 rpm (Accuracy ±15 rpm at 500 rpm)
• Timer: 1 min. to 99 hr. 59 min.
• Max Load: 4 kg / 8.8 lbs
• Tray Dimensions: 269 × 185 mm / 10.6" × 7.3"
• Body Dimensions: 269 × 325 × 128 mm / 10.6" × 12.8" × 5.0"
• Net Weight: 7.7 kg / 17 lbs
• Power Requirements: AC 100 ~ 240 V, 50/60 Hz (Universal Voltage)

Upgrade your lab workflow with the CPS-350—where precision meets daily durability.
