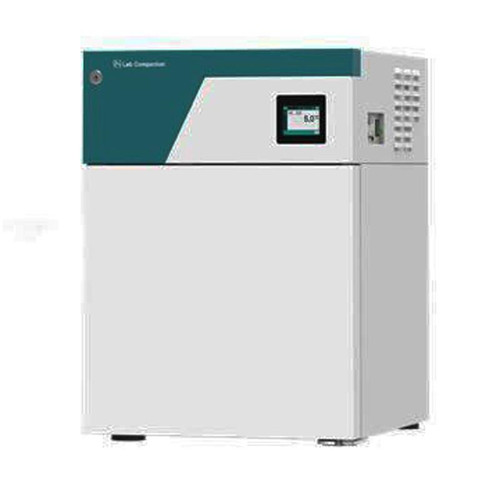

CLG-650 Laboratory Refrigerator, Solid Door, 603 / 21.3 (L / cu ft)

CLG-650 Laboratory Refrigerator with Solid Door (603L / 21.3 cu ft)

The CLG-650 is an advanced laboratory refrigerator designed to meet the demanding requirements of cold storage for pharmaceuticals, research, and clinical applications. With a robust design and cutting-edge technology, it ensures stable temperature control, user convenience, and outstanding safety.

Key Features & Benefits

Superior Temperature Control

• Temperature Range: 2°C to 10°C (35.6°F to 50°F) for optimal cold storage conditions.
• Advanced insulation and sealing structure deliver stable temperature control and reduce energy consumption.
• Auto defrost function eliminates the need for manual defrosting, ensuring hassle-free maintenance.
• Calibration Function: Minimizes temperature discrepancies to maintain consistent storage conditions.
• Dual Refrigeration Systems (850 & 1400 Models): Ensures continuous operation even if one system fails for critical temperature-sensitive items.

Durable, Hygienic, and Space-Saving Design

• Corrosion-Resistant Interior: Constructed from high-quality stainless steel for long-lasting durability and easy cleaning.
• Magnetic door packing allows for smooth opening and closing, ensuring a tight seal to maintain internal conditions.
• Compact Footprint: Designed for space efficiency, with double-stacking configuration available (150 model).
• Casters (except for the 150 model) enable easy movement and installation.
• Load Capacity: Each shelf holds up to 30 kg (66.1 lbs), providing flexibility for various storage needs.

User-Friendly Features

• Equipped with JEIO TECH's exclusive controller for reliable operation.
• Clear VFD (Vacuum Fluorescent Display) with touch keys for intuitive control.
• Simultaneous display of set and actual temperatures for real-time monitoring.
• Adjustable Shelving: Height-adjustable shelves accommodate various storage needs and maximize organization.
• Built-in Fluorescent Lamps: Efficient lighting for clear visibility inside the chamber (not included in the 150 model).
• Optional glass door model allows easy checking of storage status without opening the door.
• Optional 50mm cable port for connecting external monitoring devices (not available for 70 and 150 models).
• 21 CFR Part 11 compliant LC DataKeeper system available for secure data logging, meeting GMP audit requirements.

Enhanced Security

• Lockable door with key as a standard feature.
• Digital door lock available with the CLG3 model for advanced security.
• Controller lock function prevents unauthorized changes to settings.
• Temperature deviation alarms (high and low) provide prompt notifications to protect stored items.

Regulatory Compliance

• Designed to meet ICH Guideline Q1A (R2) requirements for stable temperature fluctuation and variation, making it suitable for pharmaceutical-grade storage.

Specifications

• Model: CLG-650
• Temperature Range: 2°C to 10°C (35.6°F to 50°F)
• Interior Volume: 603L / 21.3 cu ft
• Interior Dimensions: 650x640x1450 mm (25.6x25.2x57.1 in)
• Exterior Dimensions: 770x865x1965 mm (30.3x34.1x77.4 in)
• Net Weight: 210 kg / 463 lbs
• Shelving (Max): 11 wire shelves or 8 drawer shelves
• Shelf Load Capacity: 30 kg / 66.1 lbs
• Lighting: 18W fluorescent lamp, 1 unit
• Electrical Requirements: 120V, 60Hz, 6.5A

Why Choose the CLG-650?

The CLG-650 Laboratory Refrigerator is purpose-built to deliver reliable, long-term operation in critical settings. Whether you're storing pharmaceuticals, conducting research, or managing clinical samples, it offers unmatched performance, robust safety features, and user-friendly controls to simplify cold storage management. Perfect for laboratories, hospitals, and pharmaceutical facilities looking for high-quality, compliant refrigeration solutions.
