Interface Cradle for LogTag Dataloggers

Interface Cradle for LogTag Dataloggers

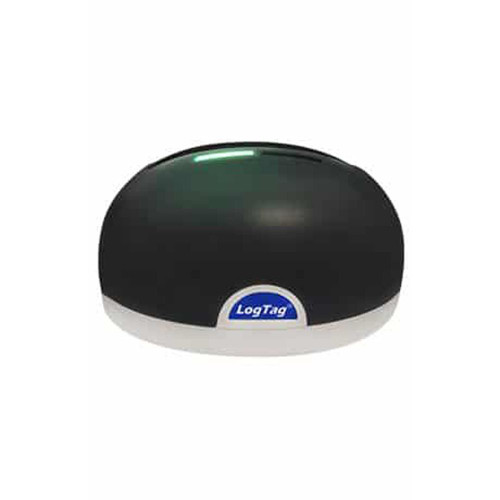

Desktop USB Interface Cradle

• Sleek new design, replacing the LTI-USB Interface Cradle.
• No proprietary drivers needed—uses built-in Windows OS drivers.
• Fully compatible with all standard LogTag products.
• Equipped with LED indicators to show current actions.

The new LTI-HID desktop USB interface cradle is the upgraded replacement for the LTI-USB model. It features built-in support for all currently supported Windows OS versions, eliminating the need for proprietary driver installations.

Designed for use with all standard LogTag recorders featuring 3 silver contact pins in the lower rear case, the LTI-HID retains the reliable spring contact system from its predecessor. It also includes a micro USB port for easy connection to your computer.

Red and green LED indicators at the top clearly display the cradle’s current actions.

Product Model            LTI-HID

Operating Temperature Range           -20°C to +60°C

Storage Temperature Range   -40°C to +70°C

USB Standard  2.0

Environmental IP50 (Rated for indoor use only)

Indicators        Green ‘Activity’ LED. Red ‘Busy/Error’ LED

Software Capability     LTA 2.9r2, LTA 3.0r8, LTX 1.1r1, LogTag Online

Power Source  Powered from computer

Connection     USB Micro

Size      45mm(h) x 85mm(W) x 71mm(D,) excluding cable

Weight 74g, excluding cable

Case Material  Polycarbonate, ABS

Accessories     1.0m USB Cable
