Humboldt Compression Machine: HCM-4000iHP Concrete Test Machine 400K

Humboldt Compression Machine: HCM-4000iHP Concrete Test Machine 400K

Machine Overview

The Compression Machine is a versatile and reliable tool for testing the compressive strength of concrete specimens, cylinders, cubes, beams and cores. With capacities from 30,000 to 500,000 lbs (133.5 to 2,224 kN) these machines are perfect for construction sites and civil engineering labs. The machines are rigid, dependable and compact making them the best choice for concrete compression testing. The Compression Machine provides accurate precision machine operation with digital load indicators and automatic controllers. Whether you are testing high-strength concrete mixes or standard specimens these machines give you reliable results every time.

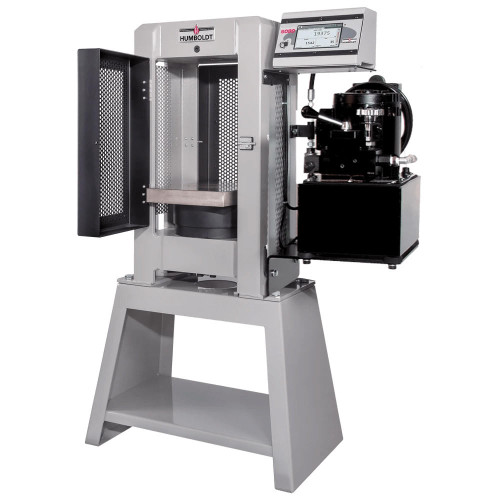

Humboldt HCM-4000iHP, Concrete Compression Test Machine, 400K (1780kN), HCM-5090 Controller, 3/4HP 110V 60Hz

The Humboldt HCM-4000iHP is a high-capacity concrete compression test machine for high-strength concrete mixes. With a capacity of 400,000 lbs (1,780 kN) this machine is for cylinders, cubes, beams and cores of high-strength concrete mixes. The HCM-5090 Controller has a 7” high-resolution, color, touch-screen to provide accurate precision machine operation and guide the user through setup. The machine has two channel inputs for load to control two separate compression frames and two additional channel inputs for displacement to test extensometers and compressometers. The HCM-4000iHP is perfect for production testing programs to get accurate and reliable results. Its robust design and features make it ideal for ensuring the quality and durability of concrete structures.

Concrete Compression Machine Applications

Concrete compression machines are used in many applications including construction sites, civil engineering labs and production testing programs. These machines are used to evaluate the quality and durability of concrete structures such as buildings, bridges and highways. The machines test the compressive strength of concrete specimens which is a critical factor in determining the quality and durability of concrete structures. Concrete compression machines are also used in research and development to test new concrete mixes and materials. Humboldt’s concrete compression machines meet the needs of many applications and provide accurate and reliable results. By using these machines engineers can ensure concrete structures meet industry standards and are safe for use.

Control and Data Management

Humboldt’s concrete machines have advanced control and data management systems to provide accurate precision machine operation. The machines have digital load indicators such as the HCM-5090 Controller which has a 7” high-resolution, color, touch-screen. The controller guides the user through setup and allows them to proceed with their test providing a user-friendly experience. The machines also have automatic controllers such as the HCM-5080 which can run tests automatically including releasing the pressure once failure has occurred. The controllers have standard tests built in including ASTM C39, C78, C293, C469, C496, C1019, C109/C109M and EN 12390-3. These features ensure Humboldt’s compression machines provide accurate and reliable results making them an essential tool for any concrete testing program.

Additional Resources

For more information on Humboldt’s compression machines see the Concrete-Compression (Data Sheet PDF). This resource provides specifications, features and applications of the machines. Humboldt also offers user manuals, technical support and training programs to help users get the most out of their compression machines. Humboldt’s concrete machines provide accurate and reliable results and the company supports its customers throughout the testing process. By using these resources users can get the most out of their testing program.

Humboldt HCM-4000iHP, Concrete Compression Test Machine, 400K (1780kN), HCM-5090 Controller, 3/4HP 110V 60Hz

• For cylinders, cubes, beams and cores of high-strength concrete mixes

• 4000 to 400,000 lbf (17.8 to 1780kN) testing range with ±0.5% of indicated load accuracy

• For concrete strength up to 11,000 psi for 6” diameter cylinders

• Standard configuration includes platens to test 6” x 12” (150mm x 300mm) cylinders.

• 2 digital controllers and 2 digital indicators

• Large frame opening for easier loading of test specimens

• Mounting stand is INCLUDED

• Optional test platens and accessories available

• Vertical Opening - 18.375” (467mm)

• Horizontal Opening - 13.312” (338mm)

• Piston Stroke - 2.5” (63.5mm)

• Lower Platen - 12.5” x 18” (318 x 475mm)

• Upper Platen, Dia. - 6.5” (165mm)

• Oil Reservoir Cap - 2 gal (7.6 liter)

• Overall Width - 39.875” (1013mm)

• Overall Depth - 20” (508mm)

• Overall Height - 61.250” (1556mm)

Frame opening dimensions are measured without test platens installed in machine. Overall machine dimensions are measured with the stand, including machines where it is optional.

Humboldt offers several great controllers for our concrete machines so you can choose the controller that best fits your application.Manual Controllers Humboldt also offers the HCM-5090, a digital indicator for use with manually-operated machines. This controller has many of the same features as our automatic controllers but is designed for use with a manually-operated pump. The HCM-5090 has the same standard test setups as the automatic controllers. Just pick the test you want to run as you configure your test and the controller will guide you through setup and then you can proceed with your test.

Humboldt’s HCM-5090 Controller has a 7” high-resolution, color, touch-screen, for precise machine operation. The HCM-5090 is part of automatic controllers Humboldt's line which includes models like the HCM-5080 and HCM-5070 for machines.

The HCM-4000iHP is great for production testing programs with its automatically controlled features.

The Humboldt HCM-4000iHP is a high-capacity concrete compression test machine for high performance concrete mixes.

For budget-minded operation we also offer the i7 indicator which is a easy-to-use digital load indicator that displays live load and rate of load during a test.

View the full line of Concrete Compression Testing Machines

Humboldt Compression Machines for Concrete are the tool to accurately measure the compressive strength of concrete specimens. These machines perform standard tests, ASTM C39 and C78, to make testing easier and more precise. Concrete compression frames have automated controllers to make testing more efficient, to perform multiple standard tests quickly and accurately and to manage multiple compression frames. These machines are used in civil engineering labs and construction sites to test the quality and durability of concrete structures, such as test beams to determine flexural strength. The machines apply a compressive force to the specimen until it fails and then engineers can measure the maximum load capacity and calculate the compressive strength. Humboldt machines are known for their accuracy, durability and ease of use, that’s why they are the popular choice for concrete testing. With a Humboldt Compression Machine for Concrete engineers can ensure concrete structures meet industry standards and are safe to use.
