Gilson Vacuum Extractor (3,000g capacity)

Gilson Vacuum Extractor (3,000g Capacity)

The Gilson Vacuum Extractor is a high-performance instrument designed for the quantitative determination of bitumen in hot-mix asphalt (HMA) paving mixtures using the vacuum extraction method. With a 3,000g capacity, this extractor is built for efficiency and precision, making it an essential tool for asphalt testing laboratories and field operations.

Design & Construction

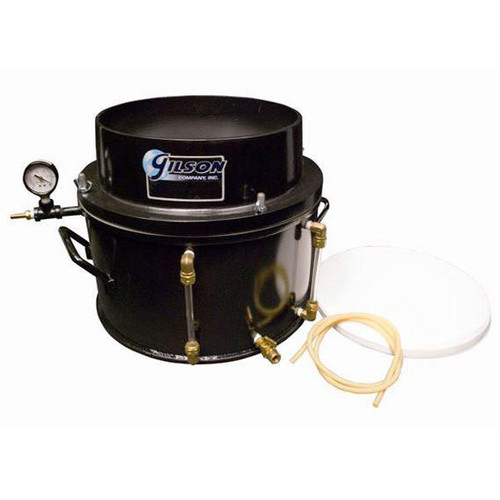

The extractor base is a 16in (407mm) diameter x 8in (203mm) high painted aluminum extraction collection tank, equipped with carrying handles for easy transport, a gauge-fitted vacuum source connection, and an extract drain valve for convenient solvent disposal. Two sight-glass gauges allow operators to monitor solvent levels and the color of the extract during the extraction process, ensuring accuracy and control throughout.

The removable funnel ring clamps filter paper and a perforated aluminum support plate to the base, sealed with a Viton O-Ring for a secure, leak-free fit. The sample and solvent are placed on the filter paper inside the ring, keeping the process clean and contained.

Improved Features

This updated model includes several enhanced design features for greater durability and ease of use:

• Anodized aluminum funnel ring for superior protection against corrosive solvents
• Quick-action wing bolt fasteners between the ring and base, with no exposed threads to reduce damage risk
• Filter paper support plate with disk spacers to prevent collapse under vacuum pressure

What's Included

Each Gilson Vacuum Extractor comes complete with everything you need to get started:

• Vacuum Extractor unit
• 25 Filter Papers
• Fitted Vacuum Gauge
• Filter Support
• Viton O-Ring Seal
• 4ft (1.2m) Vacuum Hose Connection
• Full instructions

For optimal extraction results, Gilson recommends using biodegradable terpene-based solvents alongside filter papers. Please note that a separate vacuum source is required for operation.

Specifications

• Capacity: 3,000g
• Base Dimensions: 16 x 8in (407 x 203mm) Dia. x H
• Funnel Ring Dimensions: 12.25 x 4.5in (311 x 114mm) I.D. x H
• Estimated Weight: 68.0lb (30.84kg)

Meets the Following Standards:

• AASHTO T 164
• ASTM D2172/2172M
