FLIR® Ex-Series Thermal Imaging Cameras offer instant detection of temperature gradients in many different materials. The color LCD display highlights problem areas fast, providing more advanced features than infrared thermometers can offer. These sophisticated instruments can be used for paving operations, bridge deck and floor slab inspections, location of delaminations, cavities, moisture problems in concrete and masonry prism walls, and other material testing applications.
FLIR® Cameras are compact, have a focus-free lens and simple navigation for easy one-handed operation, tough enough for rugged field use. The temperature range is between -4°–1022°F (-20°–550°C) depending on the model. Batteries last about four hours with quick charging available from the included AC charger. Models are rated to withstand shock values to 25g. Cameras combine thermal, visible, and MSX® imaging into one affordable package. MSX thermal image enhancement adds key details from the visible spectrum thermal imaging storage camera to the entire infrared image on the 3in color LCD screen, displaying accurate thermal gradients and visible details.
All models have 45° x 34° field of view with varying resolution for the MSX image. Enhanced MA-776 and MA-778 models feature better-infrared resolution, selectable measurement modes, and picture-in-picture display, which superimpose a thermal image quality long over a visible spectrum photo. Up to 500 images (128MB) of infrared, visual, and MSX images can be stored as .jpeg files in internal memory for later analysis and reporting, showcasing the camera's advanced image storage capabilities. The functionality to document download thermal images using the camera's software makes the documentation process straightforward and efficient. The unmatched manufacturer’s warranty offers 10-year coverage on the detector, 5 years on the battery, and 2 years of parts and labor. FLIR® Tools software, USB Cable, and hard plastic Transport Case are also included.
E4 through E8 series cameras now include Wi-Fi connectivity for smartphones and tablets. Use the FLIR Tools mobile app to allow sharing images and reports from any location, and take advantage of USB image controls palettes for enhanced image presentation and analysis.

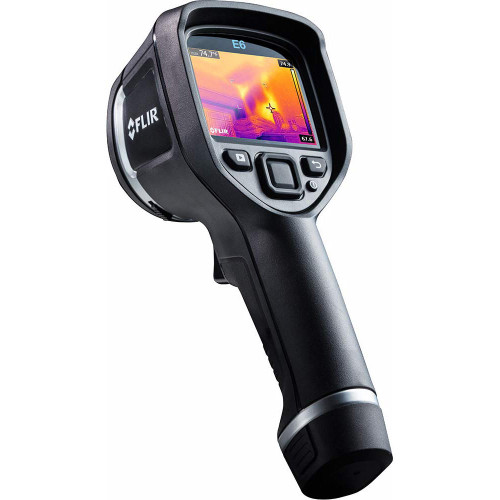

The E6-XT with a temperature range of -4°–1022°F (-20°–550°C) and a 43,000 (240x180) pixel Infrared resolution with a thermal sensitivity rating of less than 0.11°F (0.06°C). Center-spot or area box measurement is included. The display features automatic hot/cold detection to define maximum and minimum temperatures. Infrared, visual, MSX, and picture-in-picture image modes.
Features:
-
Instantly detects temperature gradients with LCD display and highlights problem areas
-
Can be used to detect the temperature in various materials
-
MSX thermal image enhancement displays accurate thermal gradients and visible details
-
The focus-free lens offers the easy one-handed operation
-
Rugged construction, tough enough for field use
-
45°x34° field of view for a wide range of visibility
-
Wi-Fi connectivity using the FLIR Tools Mobile app
Included Items:
-
FLIR® Ex-Series Thermal Imaging Camera (E4, E5-XT, E6-XT, or E8-XT series)
-
Manufacturer’s Warranty
-
FLIR® Tools Software
-
USB Cable
-
Transport Case
-
AC Charger
Temperature Range -4°–1022°F (-20°–550°C)
Accuracy ±2%, 2°C
Thermal Sensitivity < 0.11°F (0.06°C) / < 60mK
Field of View 45° x 34°
Display 3in (76.2mm) Color LCD
Display Resolution 240 x 180 pixels
Memory Capacity 500 Images (128MB)
Power Supply Rechargeable 3.6 V Lithium ion battery
Product Dimensions 9.6 x 3.7 x 5.5in (244 x 95 x 140mm)
Introduction
The FLIR BCAM Infrared Camera is a cutting-edge thermal imaging device designed for non-invasive monitoring and diagnosing building conditions. With its ultra-compact and lightweight design, this camera provides immediate high-resolution imagery, revealing potential structural and moisture issues, energy efficiency problems, and even rodent or pest discovery. In this article, we will delve into the features and capabilities of the FLIR BCAM Infrared Camera, exploring its thermal imaging capabilities, image control and display, applications and benefits, and more.
Thermal Imaging Capabilities
The FLIR BCAM Infrared Camera boasts impressive thermal imaging capabilities, with a field of view of 25° x 25° and a minimum focus distance of 0.3m. Its thermal sensitivity is < 0.15° C at 25° C, allowing it to detect subtle temperature variations. The camera’s detector type is a focal plane array (FPA) uncooled microbolometer, with 120 x 120 pixels and a spectral range of 7.5 to 13 µm. These features enable the camera to produce very sensitive thermal images, signaling moisture content in building materials and detecting potential structural and moisture issues.
Image Control and Display
The FLIR BCAM Infrared Camera features a 3.5” color LCD display, with 240 x 240 pixels, allowing for clear and crisp image presentation. The camera’s image controls include palettes (color, B/W), level, span, and auto adjust (continuous/manual). Users can also set up controls for date/time, language (English, Spanish), info, LCD intensity (high/normal/low), and power down. The camera’s built-in Laser LocatIR feature helps associate hot spots on the IR image with real physical targets, enhancing the ability to target inconsistencies.
Applications and Benefits
The FLIR BCAM Infrared Camera is specifically designed for building inspections, offering a non-invasive means of monitoring and diagnosing building conditions. Its applications include detecting energy efficiency issues, rodent or pest discovery, and moisture content in building materials. The camera’s ability to instantly image entire rooms and inspect hard-to-reach places makes it an invaluable tool for building inspectors and maintenance professionals. Additionally, the camera’s rugged, ergonomic, and lightweight design, combined with its dust and splash proof construction, dew point alarm, and insulation alarm make it suitable for harsh industrial environments, unlike moisture meters.
Conclusion
In conclusion, the FLIR BCAM Infrared Camera is a powerful tool for building inspections, offering high-resolution imagery, sensitive thermal images, and advanced image control and display features. Its thermal imaging capabilities, combined with its rugged design and user-friendly interface, make it an ideal solution for detecting structural and moisture issues, energy problems, and rodent or pest discovery. With its ability to withstand harsh industrial environments and its smart power management, this camera is a valuable asset for any building inspection or maintenance professional.
