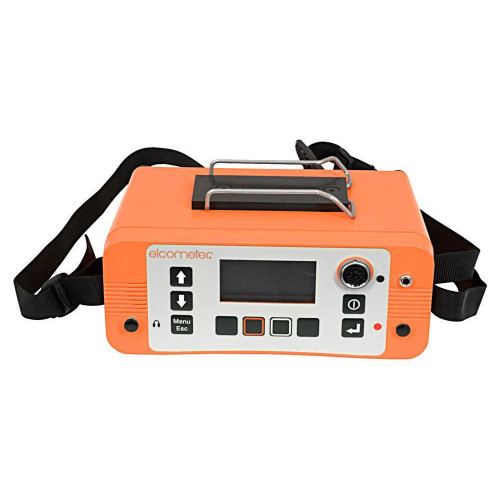

Elcometer 331 Cover Meter SH

Elcometer 331 Cover Meter SH

The Elcometer 331 Series Concrete Cover Meters redefine rebar detection with cutting-edge technology and unwavering reliability. These devices pinpoint rebar location, depth, and orientation within concrete structures, displaying the information clearly on a large, backlit graphical screen with a signal strength bar. An adjustable-volume audible signal further aids precise location. Crucially, their accuracy surpasses industry standards.

Operation is streamlined with intuitive, easy-to-navigate menus. Powering these robust meters are interchangeable lithium-ion batteries, providing an impressive 32 hours of continuous use per charge. The durable, waterproof ABS plastic casing boasts an IP65 rating, ensuring resilience in demanding environments. Users can select rebar size ranges from USA (Imperial), metric, ASTM/Canadian, and Japanese units, offering global versatility. Each Cover Meter package includes a battery pack, charger, shoulder harness, and a comprehensive manual. The included AC charger is globally compatible, adapting to 115V/60HZ, 230V/50Hz, and most other power supplies and outlet configurations.

Search Heads are essential and interchangeable accessories for the Elcometer Cover Meters. The Standard Search Head is ideal for detecting larger rebar. For enhanced resolution or to cover a wider range of rebar sizes and depths, users can opt for Narrow Pitch and Deep Cover Search Heads. A variety of additional search heads, specialized probes, an optional extension arm, spare battery packs, and calibration test blocks are also available separately for both Covermeter models, allowing for complete customization and extended functionality.

The Elcometer Cover Meter SH model elevates rebar identification by also providing location, orientation, and depth. This advanced unit boasts memory capacity for ten batches, each storing up to 1,000 readings, and offers both automatic and manual bar sizing. A significant advantage of this model is its compatibility with Half-Cell Probes (sold separately), which can be interchanged with Search Heads to measure the potential for rebar corrosion – a critical feature for structural integrity assessments. Standard features include an audible low cover alert and a Maxpip™ tone, which significantly improves accuracy during location identification. The RL-102A version comes equipped with RS 232 output and the proprietary Covermaster™ software, facilitating seamless data downloading, analysis, and professional report generation, along with a PC/Printer cable. Please note that search heads are not supplied with the Cover Meter SH and must be purchased separately to enable rebar detection functionality.

Key Features:

• Interchangeable Search Heads: Adapt to various rebar detection needs.
• Large Backlit Graphics Display: Clear, easy-to-read data in all lighting conditions.
• Exceptional Accuracy: Exceeds industry requirements for reliable results.
• Adjustable Audible Locator Signal: Pinpoint rebar with precise audio feedback.
• Multi-Standard Bar Size Selection: Supports USA (Imperial), metric, ASTM/Canadian, and Japanese units.
• Rugged IP65 Rated Casing: Durable and waterproof for harsh environments.
• Long-Lasting Battery: Up to 32 hours of continuous use with rechargeable lithium-ion packs.
• Intuitive Menu System: Simplifies operation and setup.

Additional Features (Elcometer Cover Meter SH model):

• Data Memory: Stores 10 batches of 1,000 readings each.
• Automatic and Manual Bar Sizing: Enhanced precision in rebar identification.
• Half-Cell Probe Compatibility: Measure rebar corrosion potential (probes sold separately).
• Audible Low Cover Alert: Immediate notification of shallow rebar.
• Maxpip™ Tone: Improves accuracy for precise rebar location.
• RS 232 Output & Covermaster™ Software: For data analysis, downloading, and reporting.

Included Items:

• Elcometer Cover Meter SH (RL-102A) with RS 232 output, Covermaster™ software, and PC/printer cable
• Global AC Charger
• 7.4V Rechargeable Lithium-Ion Battery Pack
• Shoulder Harness
• Comprehensive User Manual

Technical Specifications:

• Power Supply: 7.4V Rechargeable lithium-ion battery pack, providing up to 32 hours of constant use.
• Electrical Input: AC Charger adapts to 110V / 60Hz or 230V / 50Hz, compatible with most international power supplies.
• Product Dimensions: 9 x 5.1 x 4.9in (230 x 130 x 125mm) (Width x Depth x Height).
