Dayton D251L Bar Lock End Anchors, #4 (13MM)

Dayton Superior D251L Bar Lock End Anchors, #4 (13MM)

Dayton

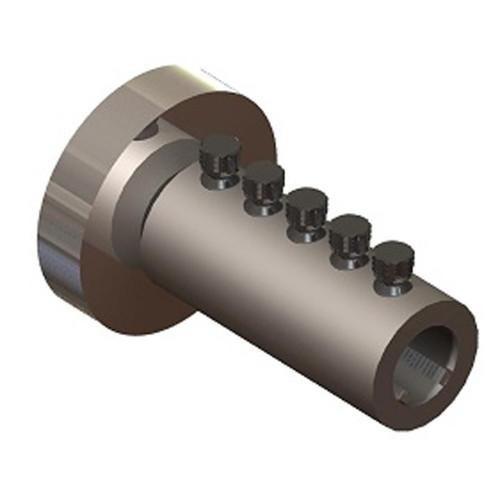

The Dayton Superior D251L Bar Lock® End Anchor is engineered to simplify the anchorage of rebar, especially in congested areas where standard hooked rebar is impractical. This system consists of a single steel disc expertly welded to a segment of Bar Lock tube, offering a compact and efficient alternative. It is available for rebar sizes #4 through #18.

Designed to develop the full strength capacity of the rebar (100% of fᵧ), the D251L performs to a Class A standard, ensuring a reliable and secure connection. This makes it an effective solution for end anchorage in various applications, including light standards, signage, and other structural elements where space is limited.

Technical Data Sheets

D251L and D252L - Bar Lock® L-Series End Anchor (US) Tech Data Sheet

Enhance your construction project with Dayton Superior D251L Bar Lock End Anchors. Specifically designed to tackle rebar anchorage challenges in tight, congested spaces, this product provides an innovative and reliable alternative to traditional hooked rebar methods.

Key Features

• Innovative Design: Features a single steel disc welded to a sturdy Bar Lock tube, creating a compact head that requires minimal space.
• Wide Compatibility: Accommodates a broad range of rebar sizes from #4 to #18, ensuring versatility across various applications.
• High Performance: Built to meet rigorous Class A standards, it develops the full specified tensile strength of the rebar.
• Code-Approved: Accepted by ACI 318, AASHTO, and various building codes as a standard 90-degree hook replacement.

Benefits

• Simplifies Congested Areas: Eliminates the need for large, cumbersome hooked rebar, reducing rebar congestion, simplifying concrete placement, and improving consolidation.
• Saves Time and Labor: The streamlined design allows for quicker installation compared to bending and placing hooks on-site, saving valuable time and labor costs.
• Enhanced Structural Integrity: By providing a secure end anchorage, the D251L ensures a strong and durable foundation for your project, particularly in critical applications like supporting light standards and signage.
• Improved Workspace Efficiency: Maintains a cleaner, more organized, and safer work environment by minimizing complex rebar layouts.

Applications

The D251L Bar Lock End Anchors are the perfect solution for construction projects with complex and congested rebar layouts. Their versatility and strength make them an essential component for contractors in various applications, including:

• New infrastructure developments (bridges, overpasses)
• Commercial and residential buildings
• Precast concrete elements
• Outdoor signage and light standard installations

Upgrade your rebar anchorage strategy with the efficiency and reliability of Dayton Superior D251L Bar Lock End Anchors. Choose the D251L for your next project to experience the advantages of superior design and performance.
