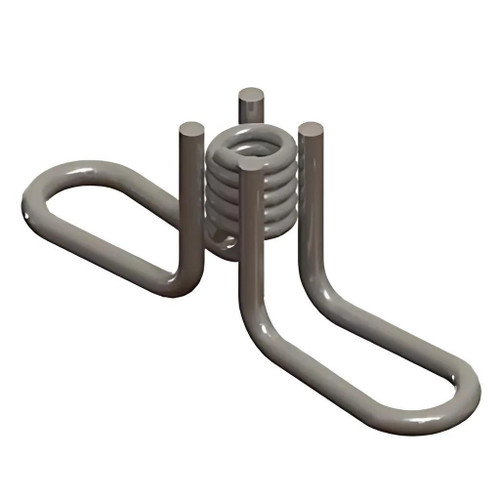

Dayton F63 Flared Coil Insert, w/ Nut, 1 x 2-5/16in, EGALV

The Dayton Superior F63 Flared Thin Slab Coil Insert is expertly designed for very thin slabs or situations where traditional longer inserts aren’t practical. When installing, make sure to position the inserts 1/2" from the concrete surface with at least 3/4" of concrete underneath. Additionally, maintain a minimum spacing that is twice the distance from any corner.

Introducing the Dayton F63 Flared Thin Slab Coil Insert—your perfect solution for high-strength fastening when conventional inserts won't do. This innovative design is specifically crafted for very thin slabs, offering exceptional stability and reliability in challenging construction settings.

Key Features and Benefits

The Dayton F63 features a wing nut style with coil threads for secure fastening, making it ideal for thin slab applications. Its design ensures proper installation by being set back 1/2" from the concrete surface while guaranteeing at least 3/4" of concrete coverage below. This precision enhances strength and security, accompanied by minimum spacing requirements—twice the distance from any corner—to optimize load distribution and improve durability.

Usage Guidelines

For best results, install each insert 1/2" from the concrete surface, ensuring a minimum of 3/4" of concrete underneath. Always follow the minimum spacing rule, which should be twice the distance from any corner to avoid stress concentrations and potential cracking. Adhering to these guidelines will help you achieve excellent results in your construction projects.

Application Areas

The Dayton F63 is perfect for various applications, including precast concrete components, wafer-thin slabs, and other construction scenarios where space is limited and longer inserts are impractical. Its versatility makes it an invaluable tool for many situations, combining flexibility with strength.

Quality Assurance

Rest assured that the Dayton F63 is made from high-quality materials that meet strict industry standards, ensuring a durable and dependable product. Our commitment to quality guarantees that each insert provides long-lasting performance, giving you peace of mind in all your projects.

Conclusion

Incorporate the Dayton F63 Flared Thin Slab Coil Insert into your next construction project to enjoy an outstanding blend of versatility and strength. Specifically designed for thin slabs, this insert empowers you to approach your projects with confidence!
