Concrete Beam Testing

Concrete beam testing is the backbone of quality control in the construction industry, providing critical data on concrete beam flexural strengths. This involves loading the beam until it breaks, with the maximum reading retained for measurement. There are two ways to apply this load: point loading where force is applied to a single point on the beam and third-point loading where the load is applied across two points. These methods are necessary to assess the structural integrity and performance of concrete beams to meet the tough for safe and durable construction projects.

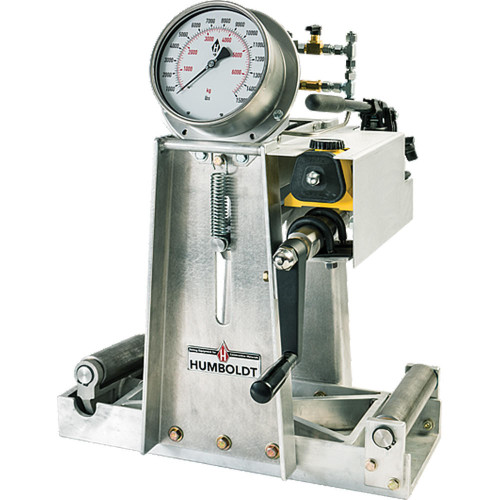

Continuous-Load Concrete Beam Tester for 6x6in Beams w/ Micro-pump, 18in Three-Point

Features and Specs

Self-contained and portable unit to test 6” x 6” test beams. Robust load frame with center point loading. Continuous readings up to beam breaks. Gauge retains maximum reading for accuracy. Calibrated with compression machine with factory calibration certificate. 25 mm diameter rollers. Weight under 90 lbs. 18” span. Dual registration of modulus at rupture. Measures beam strength.

Meets: ASTM C293, ASTM C78, AASHTO T177

The concrete beam tester is designed to meet industry ASTM C293, ASTM C78 and AASHTO T177. These standards are critical to ensure the tester meets the specifications for flexural strength testing of concrete beams. By meeting these standards the tester gives reliable and accurate results for a wide range of construction projects from foundation work to bridge construction. Tamping rods are crucial for consolidating fresh concrete specimens and ensuring compliance with these standards. This compliance means the tester is reliable and an essential tool for good construction practices.

Applications

The concrete beam tester has many applications in the construction industry. It is used for quality control to determine the flexural strength of concrete beams to meet required standards. In research and development it is used to test new materials and designs to advance construction technology. Educational institutions use the tester to teach students about concrete beam testing and structural analysis. Its portability and ease of use makes it ideal for on-site testing in various construction projects such as building foundations, bridges and highways to ensure concrete beams are up to the task. Related concrete testing equipment can aid in comprehensive quality checks.

Maintenance and Calibration

To maintain the accuracy and reliability of the concrete beam tester regular maintenance and calibration is crucial. The tester should be calibrated periodically with a compression machine and the gauge checked for precision. Check the load frame and rollers for wear and tear and replace components as needed. Also ensure the software is up-to-date to meet the latest industry standards. Regular maintenance of accessories such as the cart and load plates is also necessary to keep the tester in working condition. By following a regular maintenance and calibration schedule construction professionals can trust the tester will continue to give accurate and reliable results to meet all industry standards.

Meets: ASTM C293, ASTM C78, AASHTO T177

Humboldt's Portable, Concrete Beam Testers with Micro-pumps are a great quality control tool for contractors, DOTs and consultants to quickly and accurately determine flexural strengths of concrete using 6" x 6" cross-section test beams. These Beam Breakers are hydraulically driven units using the center-point loading method and provide continuous readings to the beam breaking point while retaining the maximum reading for accuracy and to eliminate lost data. The gauge also resets to zero for testing multiple beams. For comprehensive concrete strength testing beyond flexural assessments, consider using the Humboldt HCM-4000iHP Compression Test Machine, which specializes in compression strength tests. For non-destructive testing of concrete strength, consider using the Humboldt Concrete Rebound Hammer, which is ideal for in-place concrete strength measurements.

These beam breakers are made of lightweight aluminum making them extremely portable for use at even the most remote of job sites. Self-contained, portable concrete beam tester, which accurately and easily determines flexural strengths of 6" x 6" test beams of 16" and 18" lengths.

The H-3030CL is a single-point tester for 16" beams

The H-3032CL is a single-point tester for 18" beams

The H-3033CL is a third-point tester for 18" beams
