Circulator for Concrete Curing Tanks

Circulator for Concrete Curing Tanks

Curing Tank Circulator

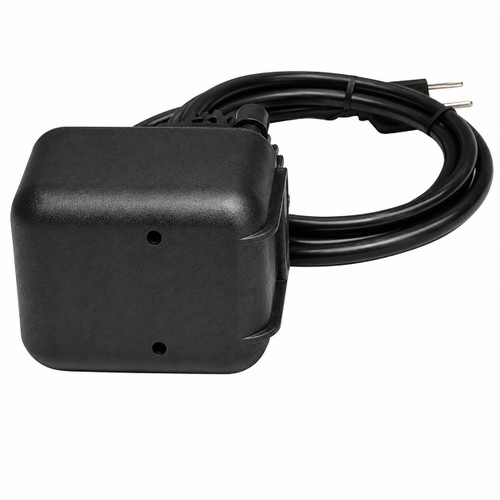

The Curing Tank Circulator is a reliable and efficient 1/125hp (36 Watt) submersion pump designed to provide steady and gentle circulation in curing tanks. With a flow rate of 3 GPM (11.4 L/min.) at 1ft (0.3m) height, it ensures consistent water movement, which is essential for even curing of concrete specimens. It features a 1/4in (6.4mm) MNPT discharge, allowing users to direct the flow by positioning the housing on any of its four sides. Built for durability, all working parts are epoxy-encapsulated within a tough, glass-filled nylon housing. The circulator comes equipped with a 6ft (1.8m) grounded power cord for safe and convenient operation.

This circulator is ideal for use in laboratory curing tanks or other industrial applications requiring controlled water movement. It ensures compliance with key standards for concrete curing, making it a trusted tool for professionals in construction material testing.

Key Features:

• Epoxy-Encapsulated Parts: Protects internal components from moisture and damage, enhancing durability and longevity.
• Durable Nylon Housing: Tough and resistant to wear, suitable for long-term use in curing tanks.
• Adjustable Flow Direction: Discharge can be directed by positioning the housing on any of its four sides.
• Quiet Operation: Operates silently, making it ideal for laboratory environments.

Included Items:

• Curing Tank Circulator
• 6ft (1.8m) Grounded Power Cord

Specifications:

• Electrical: 115V, 60Hz, 0.6 amps
• Flow Rate: 3 GPM (11.4 L/min.) at 1ft (0.3m) height
• Power: 1/125hp (36 Watts)
• Discharge Size: 1/4in (6.4mm) MNPT
• Product Dimensions: 4 x 4 x 3in (102 x 102 x 76mm) WxDxH

Applications:

• Circulation of water in curing tanks for concrete specimen testing.
• Maintaining uniform temperature and water distribution during curing processes.
• Ensuring compliance with industry standards for curing procedures.

Meets Standards:

• AASHTO M 201
• AASHTO T 23
• ASTM C511
• ASTM C192/192M

With its robust design and reliable performance, the Curing Tank Circulator is an essential tool for laboratories and facilities focused on achieving high-quality concrete curing results.
