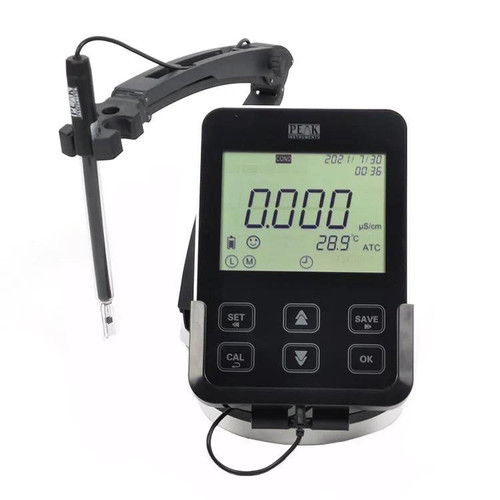

Benchtop pH Water Quality Meter with USB/SD Datalogging

Introducing the ApexLab Benchtop pH Water Quality Meter: Precision, Power, and Portability

Unlock comprehensive water analysis with the ApexLab Benchtop pH Water Quality Meter. Engineered for precision and packed with features, this state-of-the-art instrument is your ultimate solution for reliable data in any environment.

Unmatched Versatility & Performance: Our innovative meter seamlessly integrates advanced electronics, sensors, and software to accurately measure pH, alongside other critical parameters such as EC (Electrical Conductivity), DO (Dissolved Oxygen), TDS (Total Dissolved Solids), and temperature (with optional probes). Its robust yet compact design makes it indispensable for industrial and mining operations, power plants, research laboratories, and diverse environmental monitoring applications.

Intelligent Features for Seamless Operation: Experience effortless testing with a built-in microprocessor offering:

• Automatic Calibration: Quick and reliable setup.
• Temperature Compensation: Both automatic and manual adjustments (0-100℃) for accurate readings in varying conditions.
• Extensive Data Storage: Save up to 300 data sets internally, complete with readings, date, and time.
• User-Friendly Functions: Intuitive settings, automatic shutdown, and low voltage alarms ensure smooth operation.
• Enhanced Accuracy: Digital filtering and slip techniques provide faster response times and exceptionally precise, trustworthy results.

Designed for Your Workflow:

• Stunning Display: A 5-inch backlit LCD screen with a wide 150° viewing angle ensures clear visibility of your data.
• Space-Saving Design: The compact bench cradle with a rotary electrode holder keeps your workspace tidy.
• Ultimate Portability: Small footprint and light weight (280g) make it easy to move and set up wherever needed.
• Expandable Capabilities: Easily add electrodes for conductivity, dissolved oxygen, and more via a convenient 3.5mm jack.
• Seamless Data Management: USB and SD card interfaces facilitate both power supply and effortless data transfer to your PC.
• Long-Lasting Power: Rechargeable battery for extended field or lab use, with an auto-shutoff feature to conserve energy.

Complete pH Kit Includes:

• ApexLab L-510 pH Meter
• High-performance Composite pH electrode (with Automatic Temperature Compensation - ATC)
• Ergonomic electrode holder and stable base
• Precision standard buffer solutions (4.00, 6.86, 9.18pH)
• Power adapter
• USB thumb drive with comprehensive user manual

Compact Dimensions:

• Tablet: 7.5" x 5" x 0.4" (190×130×10 mm)
• Probe Arm: Approx. 16" (152 mm) fully extended
• Weight: 10 oz. (280g)

Technical Specifications:

pH

• Measurement Range: -2.00 to 19.99 pH
• Resolution: 0.1 / 0.01 pH
• Accuracy: ±0.02 pH
• Input Current: ≤2×10⁻¹² A
• Input Impedance: ≥1×10¹² Ω
• Stability: ±0.01 pH/3h
• Temp Compensation: 0 to 100℃ (auto or manual)
• Calibration: 1, 2, or 3 point

mV (ORP/EH)

• Measurement Range: -1999.9 mV to 1999.9 mV
• Resolution: 1 mV
• Accuracy: ±0.1% FS

Temperature

• Range: 0℃ to 100℃
• Resolution: 0.1℃
• Accuracy: ±0.4℃ (5-60℃), ±0.8℃ (others)

General Parameters

• Data Storage: 300 sets
• Power: DC 5V/1A (via USB)
• Communication: USB
• Dimensions: 190×130×10 mm
• Weight: 300g (meter only)

Working Conditions

• Temperature: 5℃ to 35℃
• Humidity: ≤85%
• IP Grade: IP54 (splash and dust resistant)
