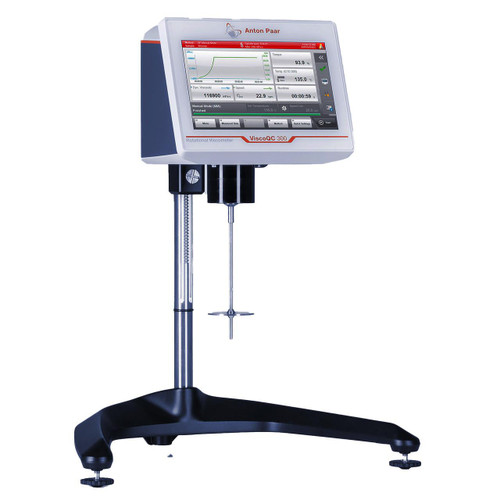

Anton Paar ViscoQC 300 H Rotational Viscometer

Precision at Your Fingertips: The Anton Paar ViscoQC H Series

In high-viscosity applications—ranging from thick pharmaceutical ointments to industrial sauces and gels—precision is non-negotiable. The Anton Paar ViscoQC H series (available in both the 100 and 300 models) is engineered specifically for measuring substances with high resistance to flow, offering a viscosity range of up to 320,000,000 mPa·s.

Choose Your Precision: ViscoQC 100 vs. ViscoQC 300

• ViscoQC 100 H: The perfect entry-level solution for rapid, single-point measurements. It features a crisp 3.5” color display and is designed for "unpack and measure" simplicity.
• ViscoQC 300 H: The advanced choice for multi-point analysis and full-scale research. It boasts a 7” color touchscreen, expanded memory for up to 999 measurements, and the ability to perform complex analysis like yield point calculations via the optional V-Curve software.

Key Features for Quality Control Excellence

• Superior Reliability with Toolmaster™: Eliminate human error. The system automatically detects the spindle as soon as it is attached via magnetic coupling, ensuring every test is documented and 100% traceable.
• TruMode™ Intelligence: Unsure which speed or spindle to use for a new formulation? TruMode™ automatically leads you to the optimal configuration, saving time and protecting your samples.
• Maximum Uptime: Unlike traditional viscometers, the ViscoQC uses highly durable bearings and features TruSine™, an automatic bearing check that reduces the need for frequent manual servicing and lowers ongoing costs.
• Pharma-Ready Compliance: For regulated environments, the ViscoQC 300 is fully compliant with 21 CFR Part 11, GMP, and GAMP 5 when paired with V-Comply software, providing audit trails and electronic signatures.

Future-Proof Your Lab with Specialized Accessories

As your testing needs evolve, so can your equipment. The ViscoQC H series is compatible with a wide range of specialized attachments:

• Heli-Plus: Ideal for non-flowing substances like creams or gels that require a helical motion to prevent "channeling" during measurement.
• PTD 175: High-performance temperature control (from -45 °C to +175 °C) to meet strict ASTM and DIN standards.
• ETD 300: Designed for high-temperature testing of bitumen and hot melts (up to +300 °C).
• PTD 100 Cone-Plate: Specifically for labs working with rare or expensive samples, allowing accurate measurements with as little as 0.5 mL of fluid.

Data Integration & Connectivity

Gone are the days of manual transcription. The ViscoQC 300 integrates seamlessly into your digital ecosystem via LIMS, FTP, or AP Connect. This allows for a completely paperless lab experience, ensuring that measurement data is communicated instantly across your organization.

Technical Specifications at a Glance (ViscoQC 300 H)

• Test Type: Multi-point measurement.
• Viscosity Range: 10.6 to 320M mPa·s.
• Speed Range: 0.01 rpm to 250 rpm (fully selectable).
• Accuracy: ±1.0 % full scale range.
• Repeatability: ±0.2 % full scale range.
• Display: 7" color touchscreen with multi-language support (EN, ES, FR, DE, and more).
• Build: Spindles made of high-grade AISI 316L stainless steel for maximum corrosion resistance.
