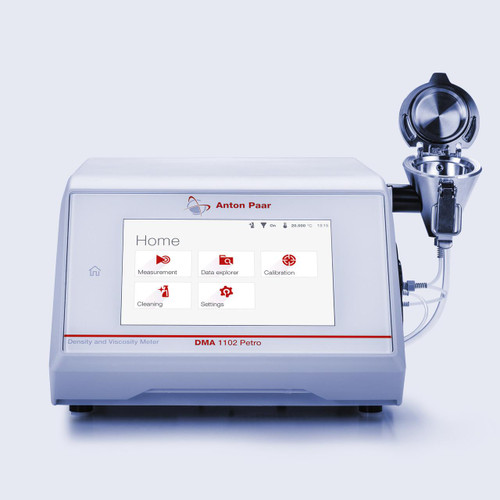

Anton Paar DMA 1102 Petro ASTM D4052 Density Meter

Anton Paar DMA 1102 Petro ASTM D4052 Density Meter: Precision and Performance Redefined

• Combined density and kinematic viscosity measurement
• Compliant with ASTM D4052 and ISO 12185
• Battery-powered, portable instrument weighing only 6.5 kg
• Direct sample filling via funnel to maximize throughput

The Anton Paar DMA 1002 Petro and DMA 1102 Petro represent the pinnacle of portable digital ASTM D4052 density meters, specifically designed for rapid and accurate measurements in both laboratory and field environments. These instruments offer a perfect blend of simplicity, durability, and advanced technology, making them indispensable tools for professionals in industries such as petroleum, chemical processing, and quality control.

Key Features and Benefits:

Unmatched Speed and Accuracy

• Achieve 150% higher throughput compared to traditional manual methods, thanks to lightning-fast measurement processes.
• Quick temperature equilibration in less than one minute ensures faster results, helping to prevent production delays due to off-spec materials.
• Provides ASTM-compliant density results with exceptional precision: ± 0.0001 g/cm³ accuracy and repeatability of 0.00005 g/cm³.

Comprehensive Fluid Analysis

• The DMA 1102 Petro goes beyond density measurements, offering integrated viscosity analysis (range: 0.3 mm²/s to 1,000 mm²/s) from the same sample, saving time and providing a complete understanding of fluid properties.
• Ideal for time-sensitive applications where both density and viscosity data are critical for decision-making.

User-Friendly Operation

• Features the Simple Fill Funnel, eliminating the need for pipettes or syringes, ensuring easy and error-free sample filling.
• Minimal training requirements and intuitive operation make the device accessible for users of all skill levels.
• Large 7-inch PCAP touchscreen display offers a clear and interactive interface for seamless navigation and control.

Enhanced Portability and Durability

• Compact, lightweight, and battery-powered, these devices are designed for ultimate portability in fieldwork and remote locations.
• Built to withstand harsh conditions, the rugged design ensures reliable performance even in extreme environments.
• Features metal measuring cells, eliminating the risk of glass breakage and enhancing long-term durability.

Compliance and Flexibility

• Fully compliant with ASTM D4052 for density measurements and other standards, including ASTM D396, D1655, and D6823.
• Offers the flexibility to conduct measurements directly at the sampling site, removing the need to transport fluids to a laboratory.

Seamless Data Management

• Advanced digital features include automatic calculations, digital data recording, and storage of up to 1,000 measured results.
• Data can be exported via USB or directly to a PC, providing easy integration with modern lab workflows.
• Compatible with Anton Paar’s AP Connect lab execution system for streamlined data access and sharing.

Safety and Sustainability

• Equipped with built-in Peltier thermostatting for precise temperature control, eliminating the need for hazardous solvents or flammable baths.
• Designed for safe use even in environments where traditional methods may pose risks.

Technical Specifications:

• Density Measurement Range: 0 g/cm³ to 3 g/cm³
• Viscosity Measurement Range (DMA 1102 Petro only): 0.3 mm²/s to 1,000 mm²/s
• Temperature Range: 15 °C to 100 °C (59 °F to 212 °F)
• Minimum Sample Volume: 3.5 mL
• Ambient Conditions: 15 °C to 35 °C (59 °F to 95 °F)

Precision:

• Density Accuracy: ± 0.0001 g/cm³
• Temperature Accuracy: ± 0.03 °C
• Viscosity Repeatability: ± 0.20%

Dimensions and Weight:

• Size: 365 mm x 265 mm x 180 mm (14.4 in x 10.5 in x 7.1 in)
• Weight: 6.6 kg (14.55 lbs)

Power and Connectivity:

• Power Supply: DC, 24 V / 3A, AC adapter (90 VAC to 264 VAC)
• Communication Interfaces: 4 USB ports (3 x A, 1 x B)
• Internal Storage: Up to 1,000 results

Applications:

The DMA 1002 Petro and DMA 1102 Petro are ideal for a wide range of industries and applications, including:

• Petroleum and Petrochemical Industries: Ensure compliance with ASTM standards in fuel quality control and production.
• Chemical Processing: Perform precise density and viscosity analysis for product development and quality assurance.
• Fieldwork and Remote Testing: Conduct on-site measurements in remote locations with maximum convenience and reliability.

Why Choose Anton Paar?

The DMA 1002 Petro and DMA 1102 Petro stand out for their innovative design, robust performance, and commitment to user safety. With patented technologies and a reputation for quality, Anton Paar ensures you have the tools you need for efficient and reliable fluid analysis.

For more information or to request a demo, contact us today and experience the next level of density and viscosity measurement!
