6in Quick-Lock Unibar Centralizer, Rebar #7 - #8 (60/Box)

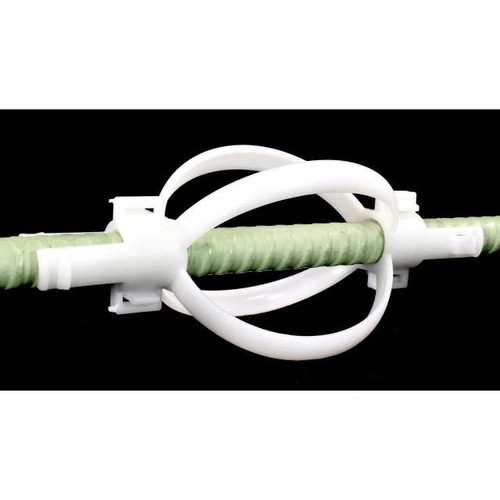

Pieresearch 6-8UBC 6in Quick-Lock Unibar Centralizer, Rebar Size #7 - #8 (60/Box)

Our revolutionary new Quick-Lock® Unibar® (Patent No. 10,151,113) and Adjustable Quick-Lock® Unibar® centralizers (Patent No. 10,584,459 B2) are the answer to soil nailing — tendon/rebar alignment support. They keep the tendon/bar centered in the bore/drill hole to allow for minimum grout/concrete coverage and do not impede flow of grout within bore/drill hole and around tendon. Assemble quickly by simply snapping the two identical halves together over the tendon/rebar and tying it on with tie wire.

To achieve proper design strength in any drilled and grouted/concreted hole, the tendon/rebar or anchor material must be centered in the shaft to allow minimum coverage throughout the length of the element. Our Quick-Lock® Unibar® and Adjustable Quick-Lock® Unibar® centralizers are made of durable, noncorrosive plastic and are designed for a variety of applications where concrete cover must be maintained. Building a strong foundation is only a few clicks away! Our quality products and ease of installation allows you to save time and money on the job site. Imagine the infinite opportunities to use our Quick-Lock® Unibar® and Adjustable Quick-Lock® Unibar®Centralizers.

Quick-Lock® Unibar® and Adjustable Quick-Lock® Unibar® Centralizers will accommodate Single Bar, Multi-Bar/Strand Anchors, Encapsulated (DCP) Anchors, and Steel or Plastic Pipe Applications. They are ideal for Soil Nails, Rock/Soil Anchors, Micro-Piles, and Auger-Cast Piles with single tension bars.

Advantages:

• 2 identical halves
• easy to snap together
• made of durable non-corrosive plastic
• can be attached with zip ties or tie wire
• offset to fit between rebar threads
• keeps single tendon/bar centered within a drill hole
• ideal for soil nail applications
• no nuts or bolts required
• lightweight and economical

The lowest Quick-Lock® Unibar® or Adjustable Quick-Lock® Unibar® Centralizer should be installed approximately 1 foot from the end of the tendon/bar material. Each successive Unibar® Centralizer should be placed at no greater than 10-foot intervals. The upper Unibar® Centralizer should be approximately 1 feet below grout/concrete surface.

Perfect for your construction project and be sure to browse all of our concrete accessories as well as our concrete test equipment to ensure your project is built to last.

Sold 60 per box

30 boxes per pallet

The Pieresearch 6-8UBC 6in Quick-Lock Unibar Centralizer is a revolutionary product designed to provide tendon and rebar alignment support in soil nailing applications. With its unique Quick-Lock® Unibar® design, this centralizer keeps the tendon or bar centered within the bore or drill hole, allowing for minimum grout or concrete coverage.

Constructed from durable and noncorrosive plastic, these centralizers are built to withstand demanding construction environments. They are easy to assemble, simply snap the two identical halves together over the tendon or rebar and secure it with tie wire. No nuts or bolts are required, making installation quick and hassle-free.

One of the key advantages of the Quick-Lock Unibar Centralizer is its versatility. It can accommodate various applications including single bar, multi-bar/strand anchors, encapsulated (DCP) anchors, and steel or plastic pipe applications. This makes it ideal for soil nails, rock/soil anchors, micro-piles, and auger-cast piles with single tension bars.

The centralizers are lightweight and economical, offering a cost-effective solution for tendon and rebar alignment. They can be attached with zip ties or tie wire, providing flexibility in installation. The offset design allows them to fit between rebar threads, ensuring proper positioning.

To achieve optimal results, it is recommended to install the centralizers at 10-foot intervals, with the lowest centralizer placed approximately 1 foot from the end of the tendon or bar material. The upper centralizer should be positioned approximately 1 foot below the grout or concrete surface.

Each box contains 60 Quick-Lock Unibar Centralizers, and there are 30 boxes per pallet, making it convenient for large-scale projects. Technical drawings, product spec sheets, and MSDS information are available for detailed reference.

Whether you are working on a soil nailing project or any other construction project, the Pieresearch 6-8UBC 6in Quick-Lock Unibar Centralizer is the solution you need. With its high-quality construction and ease of installation, it ensures your concrete elements are built to last. Browse our range of concrete accessories and test equipment to complete your project successfully.
