Gilson MC-300P 300K Concrete Compression Machine with Pro Controller

Note: Gilson has replaced the MC-300P with its BC series. The current equivalent is the Gilson BC-325 325,000lbf basic compression machine.

When 250,000lbf is not quite enough, the Gilson MC-300P gives you a 300,000lbf (1,335kN) frame that tests 6x12in cylinders up to 8,500psi. The Pro controller keeps operation simple: live load and loading rate during the break, then peak load and average rate the moment the specimen fails.

Solid steel crossheads 3 to 6in thick make Gilson standard frames among the stiffest available, meeting ACI 363 rigidity recommendations. The bottom-mounted hydraulic ram applies force upward through a precision-ground piston with O-ring seal and Teflon backup ring. A two-stage, oil-immersed pump advances the piston rapidly, then switches automatically at 135psi to the low-volume, high-pressure stage for smooth loading. Spherically seated upper platen assemblies are ground and hardened.

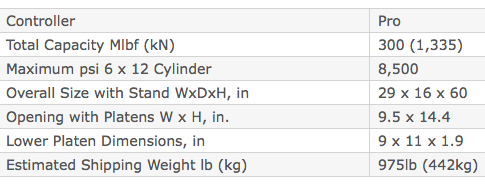

Specifications

  • Load capacity: 300,000lbf (1,335kN)
  • Maximum stress, 6x12in cylinder: 8,500psi
  • Opening with platens: 9.5 x 14.4in, WxH
  • Lower platen: 9 x 11 x 1.9in
  • Overall size with stand: 29 x 16 x 60in, WxDxH
  • Load rate range: 2,000 to 200,000lbf per minute
  • Electrical: 115V, 60Hz (230V, 50Hz version available)
  • Accuracy exceeds ASTM C39 and E4; frame meets ACI 363 stiffness recommendations

Pro Controller Features

  • Pro controller: 5.3in (135mm) backlit LCD, 240 x 64 pixels
  • Live load and live rate of load during the test; peak load and average loading rate shown at completion
  • Accuracy better than ±0.5% of indicated load from 1% to full capacity, exceeding ASTM C39 and E4
  • Transfers results to a PC as a Word or spreadsheet file with the optional USB cable, or prints to an optional serial printer
  • Units: lbs, kN, kg or N; stainless steel NEMA-4 enclosure; UL, CUL, CE and Measurement Canada listed

Stand, Platens and Test Sets

Cylinder capping supplies: 6in neoprene pad caps, 6in steel retainer set and perpendicularity verification device for 6x12in cylinders. Compare the MC-300PR Pro-Plus version or browse all concrete compression testing machines.
