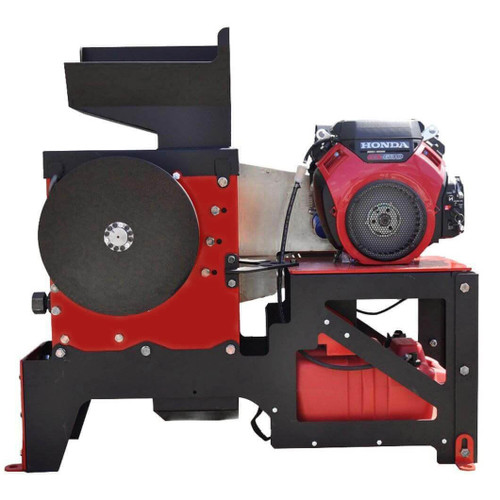

10in Jaw Crusher with 20hp Gasoline Engine
10in Jaw Crushers have a maximum feed size of 8in (203mm) and final output size can be regulated from ¼ to 3in (6 to 76mm) through clearance adjustment of the jaw plates. Throughput is approximately 1 to 2 tons (900 to 1,800kg) per hour. Jaw sizes are 10 x 6in (254 x 152mm) WxD and are made from 3/4in (19mm) material hard-faced with abrasion resistant steel. Facing material has Brinell hardness of 450. Special abrasion-resistant Cast Manganese/Chrome jaw plates are also available for longer life or for processing of especially hard and tough materials.
Available power options are 20hp Gasoline or 18hp Diesel engines, or a 10hp Electric Motor.
The main shaft is 2.4in (61mm) at the cam shaft and 2in (51mm) at the drive shaft. The efficient electric motor is supplied ready for wiring to a number of common three-phase voltage configurations from 208 to 460 volt.
Maximum Particle Size 8in (203mm)
Max. Feed Capacity 1 to 2 tons (900 to 1,800kg) per hour
Final Size 0.25 to 3in (6 to 76mm)
Composition Hard-Faced Abrasion Resistant Steel, 10 x 6in (254 x 152mm) Jaws
Application bulk aggregates, minerals and ores
Motor LC-44G: 20hp Gasoline / 3 Phase
Product Dimensions 56 x 32 x 48in (1422 x 812 x 1220mm), WxDxH
Accessories for Laboratory Jaw Crushers:
Cast Manganese / Chrome Steel Jaw Plates For 10in Jaw Crusher for crushing hard and tough materials
View the full line of Pulverizers and Lab Crushers, Pulverizers, Laboratory Jaw Crushers and Crushers, or the popular Mini-Jaw Crusher
