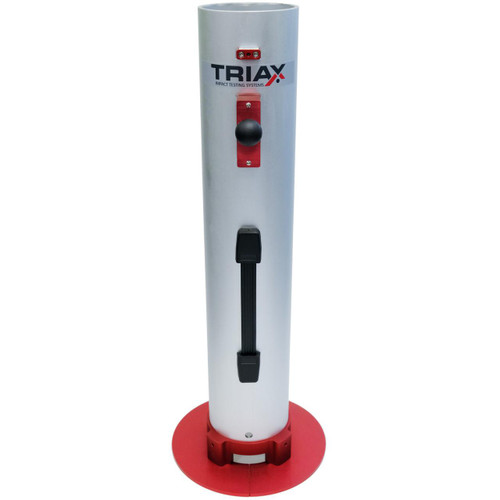

Triax Touch gMax Impact Tester with Guide Tube and Hard Case

Triax Touch gMax Impact Tester with Guide Tube and Hard Case

The Triax Touch gMax Impact Tester is intended to measure the impact of artificial and natural turf playing surfaces. This device allows quick gMax testing for safe playing conditions and is in compliance with standards including ASTM F1936 and ASTM F355. The hammer has a cylindrical shape with a weight of 20.0 pounds and is dropped in a guide tube from a fixed height of 24 inches.

The Triax Touch gMax Impact Tester comes with a wireless handheld controller that is small, lightweight and portable. The Triax Touch gMax Impact Tester system also includes a PC application that speeds the creation and archiving of test reports, which show all impact test data along with the date/time stamp and user comments. The test results cannot be altered, particularly important to risk managers wanting to ensure data has not been tampered with should a legal action occur over safety of the playing surface.

The use of Triax Touch gMax Impact Tester system is applicable to a wide range of additional standards including:

- Natural Grass Sports Fields ASTM F1936 & ASTM F355
- Synthetic Turf Sports Fields ASTM F1936 & ASTM F355
- Wrestling Mats ASTM F1081
- Trampoline Courts ASTM F2970
- Consumer Trampolines ASTM F381

Unit Includes:

• Triax Touch gMax Impact Tester Wireless Impact Head
• Triax Touch Wireless “A” Missile
• Triax Touch Wireless Hand Held with padded case
• Guide Tube
• Reference Mat
• PC Application for report generation
• ISO 17025 calibration and certificate
• Wheeled carrying case
• Charger

Specifications:

• Weight 20.0 pounds, +/- 0.11 pounds 9.10 kg, +/- 0.05 kg
• Shape Cylinder Diameter 5.00 inches, +/- 0.10 inches 127 mm, +/- 2 mm
• Material 303 Stainless Steel
• Solid billet design
