Thermal Imaging Camera, Professional Enhanced

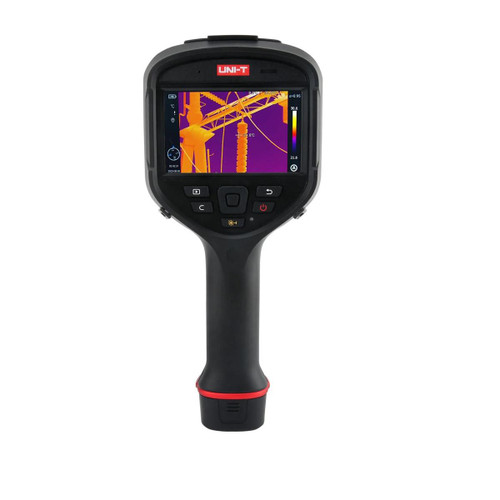

UNI-T UTi640J: Professional Enhanced Thermal Imaging Camera

The UNI-T UTi640J is a high-precision thermal imaging camera engineered for demanding industrial and professional applications. Housed in a durable and ergonomic "hammer" style body, this device combines cutting-edge thermal technology with robust functionality, providing professionals with the clarity and data needed for critical diagnostics and analysis.

Unmatched Imaging and Thermal Performance

At the heart of the UTi640J is a high-sensitivity uncooled focal plane array (UFPA) infrared detector with a native resolution of 640×480 pixels. This powerful sensor is capable of detecting minute temperature differences with a thermal sensitivity (NETD) of ≤40mK, ensuring that even the smallest thermal anomalies are visible.

For situations requiring even greater detail, the camera's Super Resolution mode digitally enhances images to an impressive 1280×960 pixels, providing unparalleled clarity for in-depth analysis. This is complemented by a high-definition 13MP visual light camera, which allows for seamless fusion of thermal and visible spectrums, giving context to thermal readings.

With a smooth 30Hz frame rate, the UTi640J captures fluid thermal video, making it ideal for monitoring dynamic processes and tracking temperature changes on moving targets without motion blur.

Key Features at a Glance:

• High-Resolution Infrared Sensor: 640×480 native pixels, upgradeable to 1280×960 with Super Resolution.
• High-Definition Visual Camera: 13MP for crisp, detailed visible light images.
• Advanced Focusing System: Master every shot with five modes: Manual Focus, Automatic Focus, Touch Autofocus, and Continuous Autofocus for tracking moving objects.
• Versatile Interchangeable Lenses: Adapt to any scenario with a comprehensive lens system:
  • UT-Z006 Macro Lens: For detailed inspection of small components like PCBs.
  • UT-Z007 Wide-angle Lens: For capturing large scenes, such as building facades or entire rooms.
  • UT-Z008 Medium Telephoto & UT-Z009 Telephoto Lenses: For inspecting distant or inaccessible targets safely.
  • UT-Z010 High-Temperature Lens: For specialized applications involving extreme heat.
• Powerful Zoom: 20x digital magnification for close-up analysis.
• Customizable Color Palettes: Choose from a rich selection of color palettes (including Iron, Rainbow, White Hot, and more) and customize them to highlight specific temperature ranges.
• Advanced Imaging Modes:
  • Level & Span Mode: Manually or automatically adjust the temperature range for focused analysis.
  • Image Outline & Fusion: Blend thermal and visual images for better context.
  • Panoramic Stitching: Automatically create a wide-view thermal image from multiple captures.
  • Dual-Light Video Recording: Simultaneously record thermal and visual video.
• Integrated Tools: Built-in Laser Range Finder for accurate distance measurement and precise focusing.
• Rich Annotation: Add text, voice, and visual annotations directly to images for comprehensive reporting.
• Seamless Connectivity: Wi-Fi Live Streaming allows for real-time video sharing to mobile devices or computers for collaborative analysis.

Professional Applications

The UTi640J is an indispensable tool across a wide range of professional fields, empowering users to work smarter, safer, and more efficiently.

Industrial Equipment and Predictive Maintenance

In industrial settings, uptime is critical. The UTi640J enables maintenance professionals to perform non-contact inspections on motors, pumps, bearings, and other machinery. By detecting abnormal heat patterns, technicians can identify potential failures like misalignment, friction, or lubrication issues before they cause costly downtime.

Electrical Systems Inspection

Electrical faults often manifest as heat. The UTi640J allows electricians and engineers to safely scan switchboards, transformers, and power lines to identify overloaded circuits, loose connections, and imbalanced loads. Its high sensitivity makes it ideal for detecting subtle temperature variations that signal impending problems.

Building Diagnostics and HVAC Audits

Energy efficiency and structural integrity are paramount in building management. The camera can quickly pinpoint sources of energy loss, such as poor insulation, air leaks around windows and doors, and moisture intrusion within walls. It is also an essential tool for HVAC professionals to verify system performance and locate ductwork leaks.

Precision Manufacturing and Quality Control

In manufacturing environments, consistent temperature is key to quality. The UTi640J helps quality control teams monitor thermal uniformity in processes like injection molding, thermoforming, and welding. Features like panoramic stitching and detailed temperature tracking ensure that products meet strict quality standards.

Research and Development (R&D)

For researchers and engineers, thermal data is invaluable. The UTi640J's comprehensive annotation capabilities, multiple imaging modes, and high-quality data capture provide unparalleled insights for scientific investigations, electronics testing, and product development, allowing for detailed documentation and analysis of thermal behavior.
