TH3-E-200 Temperature and Humidity Chamber, 201 / 7.1 (L/cu ft)

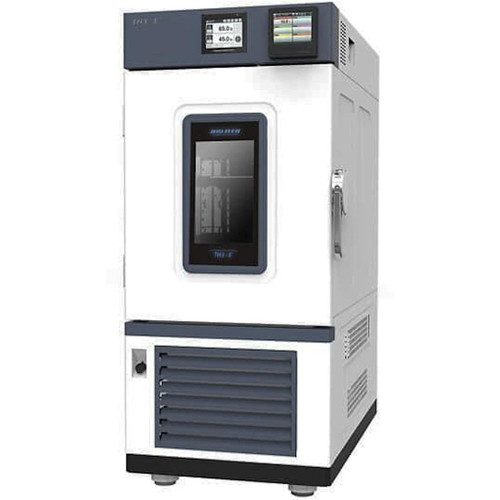

TH3-E-200 Temperature and Humidity Chamber

Introducing the TH3-E-200 Temperature and Humidity Chamber, a state-of-the-art environmental testing solution designed for precision, reliability, and ease of use. With a 201-liter (7.1 cu ft) capacity, this chamber is ideal for a wide range of testing applications where stable temperature and humidity conditions are critical.

Advanced Control and Operation

• Intuitive Touch Display: A 5.6-inch color touch display makes operation simple and convenient, allowing you to monitor the chamber's status with easy-to-read graphs.
• Simplified Systems: The chamber's water and electrical systems have been streamlined to minimize potential faults and enhance reliability. A built-in water level check function ensures you can replenish water at the optimal time.

Superior Structural Design

• Stable Performance: Excellent thermal insulation and a double-sealed door structure provide enhanced airtightness, ensuring stable and reproducible temperature and humidity conditions, even during repeated tests.
• Optimal Air Circulation: An internal fan system circulates air at the ideal speed, maintaining uniform conditions throughout the chamber.
• Energy Efficiency: The energy-saving system is designed for efficiency, reducing power consumption during operation without compromising performance.

Uncompromising Safety Features

The TH3-E-200 is equipped with multiple safety mechanisms to protect your samples and the unit itself.

• Dual Over-Temperature Protection: Includes both an electronic over-temperature shutdown system (A-OT) and a mechanical backup limiter (B-OT) to prevent overheating.
• Comprehensive Alarms: Features alarms and automatic shut-offs for low/empty water levels and door-open warnings.
• Electrical Safeguards: Protected by overcurrent and short circuit protection, fuses for each heater, and automatic shutdowns for compressor overload, overheating, or abnormal refrigerant pressure.
• Safe-to-Touch Surface: The chamber's exterior is designed to remain below 60°C for user safety.

User-Friendly Convenience

• Efficient Water Management: The water supply and recirculation system is designed for long-term, high-humidity tests with minimal water refilling. A direct water supply option is also available.
• Easy Sample Observation: A tempered glass door with a built-in heating wire and LED lamp allows for clear observation of samples without condensation.
• Simple Maintenance: The refrigerator condenser grill is easy to remove for cleaning, helping maintain the efficiency of the refrigeration system.

Multifunction Control and Data Management

• PC Connectivity: Connect up to 32 units to a single PC via an RS-485 port for centralized control and data processing.
• Precision Control: Features reliable auto-tuning and calibration for both temperature and humidity. The PID controller is subdivided into 9 zones for exceptionally precise control.
• Mobile Monitoring: Stay connected with the LC Connected mobile app, allowing you to monitor your chamber from anywhere (requires optional LC GreenBox).
• GMP Compliance: Can be integrated with 21 CFR Part 11 compliant LC DataKeeper software, making it suitable for GMP audits (optional).

Technical Specifications

Model: TH3-E-200 Chamber Volume: 201 L / 7.1 cu ft

Performance:

• Temperature Range (without humidity): 0°C to 90°C (32°F to 194°F)
• Humidity Range: 35% to 85% RH
• Temperature Fluctuation: ±0.5°C
• Humidity Fluctuation: ±1% RH

Internal Dimensions (W x D x H):

• 500 x 670 x 600 mm / 19.7 x 26.4 x 23.6 inches

General:

• Shelves: 2 standard / 9 maximum
• Max Load per Shelf: 20 kg / 44.1 lbs
• Total Permitted Load: 50 kg / 110.2 lbs
• Weight: 200 kg / 440.9 lbs
• Electrical Requirements: 230V, 1ph, 60Hz, 15A
