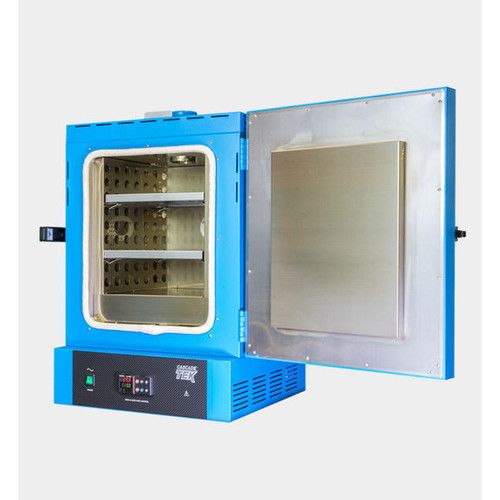

Cascade TFO-1: 1.4CF Capacity, 300C
TFO-1: 1.4CF
TFO-1: 1.4CF Capacity, 1.4 300C
Cascade TFO’s Model TFO-1 benchtop forced air oven is designed to meet both manufacturing and laboratory requirements. With features such as programmable Watlow ramp and simile, rear access to ports for feedthrough and power cable connections, adjustable and adjustable shelves, this text is a nostalgic and enthusiastic tone.
• Add to Watlow F4T Touchscreen Controller with Datalogging to track performance data
• Add Serial communication capabilities including Modbus® RTU, EtherNet/IP™, Modbus® TCP, PROFIBUS DP, DeviceNet™ and J1939 CAN bus
• Add access ports for feedthrough and power connections
• Add shelves or custom racks to increase oven capacity
• Also available in 220V
• NIST Traceable Calibration of Setting Ring NIST traceable calibrations
• Factory Acceptance Testing (FAT)
• Chart recorders
Our customization services will meet your specific application needs.
Capacity
1.4CF
Interior Dimensions (W x D x H)
10.5”x 12.5”x 13.5”
Exterior Dimensions (W x D x H)
18.5”x 20.5”x 26.5”
Weight
115 lbs
Shipping Weight
145 lbs
Shelves
2
Access Port
1.75”
Warranty
2 year
Electrical
50/60Hz, AC, 1Ø
110V-120V
NEMA Plug Supplied
5-15P
Temperature Range
20°C above ambient to 300°C
Heat-Up Time
20 minutes to 150ºC
Recovery after Door Opening (30 Sec.)
4.5 minutes to 150ºC
Temperature Uniformity
±2.3°C
Flow Rate
5.6CFM
Certifications
TÜV SÜD America: Canada CSA 61010-1, USA UL 61010-1, EU EN 61010-1, CE
Forced Air Lab Applications
Forced air ovens from Cascade TFO are versatile and can be used for drying, curing and baking. The ovens can execute different drying profiles so you can customize the processing parameters to your specific needs. With programmable Watlow ramp and soak controllers you can store and execute unique drying profiles and process many different materials. They are also great for manufacturing environments where consistent and efficient heating is critical.
Ordering and Support with Forced Air Knowledge
When you order a forced air oven from Cascade TFO, you will get expert support. Our team of experienced professionals will help with product selection, configuration and installation so you get the right oven for your application. We have many products to choose from including the TFO-1 and TVO-2 models. You can trust you are getting a high quality oven that meets your needs. Our ovens are made in the USA and we are committed to excellent customer service and support. Whether you need a standard or custom oven, Cascade TFO has the knowledge and experience to meet your needs and our products are in stock and ready to ship so you can get started with your processing needs.
