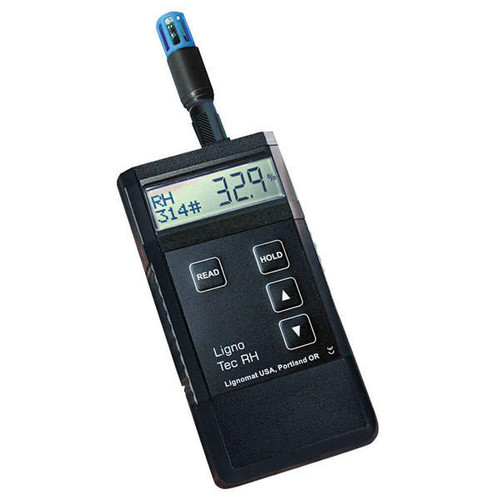

Tec RH Meter with BluePeg Probe and Adapter

Tec RH Meter with BluePeg Probe and Adapter

The Tec RH Meter is a high-precision digital hygrometer designed for accurate measurement of relative humidity (RH), temperature, dew point, and grains per pound (GPP). It is specifically engineered to work seamlessly with BluePeg Probes, offering a comprehensive solution for concrete moisture testing in accordance with industry standards.

Key Features:

• Large LCD Display: Provides clear, simultaneous readings of relative humidity, temperature, dew point, and GPP with 0.1 resolution across all ranges.
• High Accuracy:
  • Relative Humidity: ±2% for 10-90% RH, and ±3% for 0-10% or >90% RH (for the probe and meter system).
  • Temperature: ±0.5°F for 32°-120°F (0°-49°C); ±1°F for 5°-32°F (-15°-0°C) and 120°-160°F (49°-71°C).
• Versatile Operation: Can be used with the included BluePeg Probe via a cable or directly with the adapter for ambient condition measurements, functioning independently as a thermo-hygrometer.
• ASTM F2170 Compliance: Fully meets the requirements for in-situ relative humidity testing of concrete slabs. This method is critical for preventing moisture-related damage to floor coverings and coatings, and for mitigating potential mold growth.
• BluePeg Probe System: NIST-certified probes are easily retrievable for repeated use, offering cost-effectiveness and efficiency.
• Durable Construction: Housed in a foam-lined, hard plastic carrying case for secure transport and protection of all components.

Importance of Concrete RH Measurement:

Accurate measurement of relative humidity transmission in concrete floors is paramount for construction and flooring professionals. Unlike surface moisture tests, the RH method provides a thorough profile of moisture content throughout the concrete slab's depth. This comprehensive data is crucial for:

• Preventing Mold Growth: High moisture levels in concrete can create an ideal environment for mold and mildew.
• Protecting Floor Coverings: Moisture can severely damage expensive floor coverings, adhesives, and coatings, leading to costly repairs and replacements.
• Ensuring Longevity: Proper moisture management contributes to the long-term integrity and performance of flooring systems.

How it Works (ASTM F2170 Method):

1. Borehole Drilling: A 0.625in (16mm) diameter borehole is drilled into the concrete slab to a specified depth (typically 40% of the slab thickness for drying from one side, or 20% from both sides).
2. Sleeve Insertion: A plastic sleeve is inserted into the borehole.
3. Equilibration Period: The boreholes are left to reach temperature and moisture equilibrium (typically 24 hours).
4. Probe Insertion & Measurement: A BluePeg Probe is inserted into the sleeve and connected to the Tec RH Meter for periodic, non-destructive measurements of humidity levels.
5. Protection: Between readings, the probes are protected with a cap, allowing normal construction activities to continue without interference.

Lignomat Concrete Humidity Measurement Kits:

Lignomat offers complete kits that include everything needed for ASTM F2170 compliant RH testing. The Tec RH Meter with BluePeg Probe and Adapter is a core component of these kits.

Includes:

• Tec RH Meter
• RH Adaptor for direct probe connection or ambient readings
• One NIST-certified BluePeg Probe
• Foam-lined, hard plastic carrying case

Specifications

• Relative Humidity Accuracy (Probe & Meter System): ±2% for 10-90% RH, and ±3% for 0-10% or >90% RH
• Temperature Accuracy:
  • ±0.5°F for 32°-120°F (0°-49°C)
  • ±1°F for 5°-32°F (-15°-0°C) and 120°-160°F (49°-71°C)
• Display: Large LCD, simultaneously displaying RH, Temperature, Dew Point, and GPP
• Resolution: 0.1 for all displayed parameters
• Product Dimensions (Meter): 12 x 8 x 3.5in (306 x 203 x 89mm) WxDxH (Note: These dimensions likely refer to the case rather than the meter itself for practical shipping/storage)
• Power Source: Standard 9V battery (not typically included, but standard for these devices)
• Operating Temperature Range: Recommended range for optimal performance (typically 40-100°F / 5-40°C, though the temperature sensor range is wider)

Meets Standard(s)

• ASTM F2170: Standard Test Method for Determining Relative Humidity in Concrete Floor Slabs Using in situ Probes
• ASTM F2659: Standard Guide for Preliminary Evaluation of Comparative Moisture Condition of Concrete, Wood, and Other Pervious Floor Coverings and Walls Using a Non-Destructive Electronic Moisture Meter (when used for ambient readings)

Accessories (Available Separately):

• Additional BluePeg Probes: For increased efficiency when testing larger areas or multiple locations simultaneously.
• Plastic Sleeves with Caps: Essential for proper borehole preparation and protection.
• Calibration Check Solutions: To verify and maintain the accuracy of your probes and meter.
• Brush and Vacuum Attachments: For thorough cleaning and preparation of boreholes, ensuring accurate readings.
