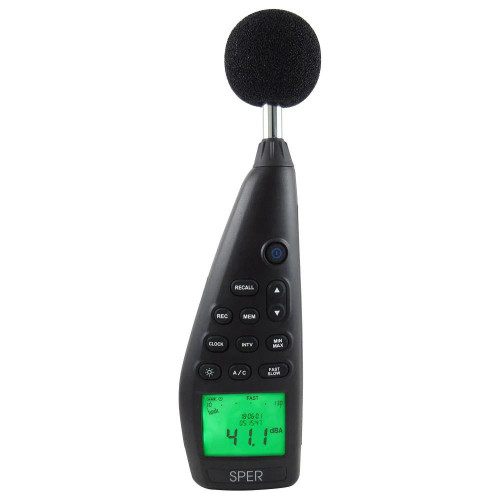

Advanced Datalogging Sound Meter

Advanced Datalogging Sound Meter

The Advanced Datalogging Sound Meter is designed for precision and ease of use. Featuring a single dynamic range of 30~130 dB, it eliminates the need for manual range selection, reducing the risk of data errors during range changes often seen in auto-ranging models. With a large, bright back-lit display, this device effortlessly displays all test parameters simultaneously, offering 0.1 dB resolution and an intuitive bar graph for real-time monitoring.

Datalogging Capabilities

• Automatically log up to 31,000 records, which can be downloaded and analyzed later.
• Manually save and recall up to 99 data points directly on the meter’s LCD, complete with date and time stamps for accurate record-keeping.
• A bi-directional USB port allows seamless connection to a computer for control via an on-screen interface using the included software.

Professional-Grade Accuracy This meter is accurate within ±1.0 dB and exceeds specifications for IEC 61672:2013 Class 2 and ANSI S1.4:2014 Type 2 standards, ensuring reliable performance in professional settings. Whether you’re conducting workplace compliance checks, environmental noise monitoring, or sound quality testing, this sound meter delivers the precision you need.

Key Features

• A/C weighting scales and fast/slow response modes.
• Min-Max functionality and over/under alarms for comprehensive sound assessment.
• AC or DC recorder output for additional data logging options.
• Auto power-off to conserve battery life.
• Easy self-calibration in compliance with OSHA standards using the optional Acoustical Calibrator 850016.

Complete Kit for Convenience The Advanced Datalogging Sound Meter comes in a protective, foam-lined carrying case and includes:

• Windscreen for outdoor use.
• USB computer connection cable.
• User-friendly software for analysis and control.
• Calibration tool for fast setup.
• 4 AA batteries providing approximately 30 hours of continuous use.

Additional Accessories An optional microphone extension cable is available for remote measurements, allowing you to monitor sound levels from hard-to-reach or hazardous locations. For maximum stability and accuracy, the meter also features a tripod mount, and we highly recommend using a tripod during measurements.

Specifications

• Measurement Range: 30 to 130 dB
• Resolution: 0.1 dB
• Accuracy: ±1.0 dB

Whether you’re a health and safety officer, an environmental scientist, a sound engineer, or simply need a reliable tool for sound measurement, the Advanced Datalogging Sound Meter is equipped with the features and durability to handle the job with confidence.
