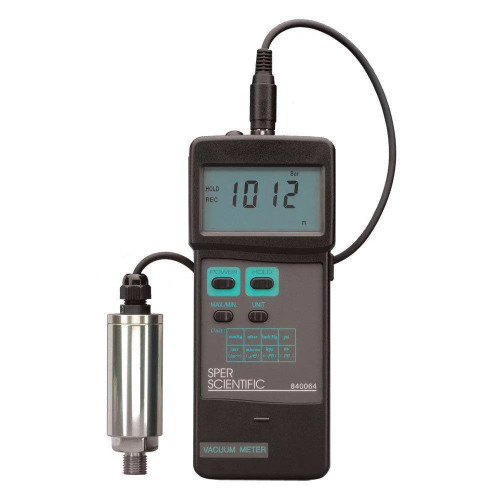

Portable Handheld Vacuum Meter

Portable Handheld Vacuum Meter

Introducing the Portable Handheld Vacuum Meter, your go-to device for precise absolute vacuum pressure measurements across a wide range of applications.

Engineered for accuracy and versatility, this meter is an essential tool for professionals in hospital labs, crystal growing facilities, solvent recovery operations, distillation processes, and rotary evaporation setups. It also proves indispensable for HVAC technicians, automotive specialists, and various other industrial applications where precise vacuum measurements are critical.

The meter comes equipped with a detachable, heavy-duty probe featuring a standard ¼ PS connector, making it compatible with liquid, air, oil, and gas environments. The durable 49-inch probe cord provides ample reach for difficult-to-access measurement points.

Key Features:

• Large, Easy-to-Read Display: The high-contrast LCD screen clearly presents readings, preventing errors and improving workflow efficiency.
• Multiple Units of Measure: Instantly switch between eight different units (mbar, Kpa, Pa, torr, mm Hg, micron, in Hg, and PSI) to suit your specific requirements without manual conversion.
• Advanced Functions: Includes Min/Max recording to capture pressure fluctuations, a Hold function to freeze the current reading, a low battery indicator, and an auto power-off feature to conserve battery life.
• Ready for the Field: The meter arrives ready to use in a protective, foam-lined, hard-shell carrying case, complete with a 9V battery and detailed instructions.

Specifications:

• Dimensions: Meter: 7" × 3" × 1½" (180 × 75 × 35 mm) | Probe Cord: 49” (125 cm)
• Weight: Meter: 8 oz (220 g) | Probe: 6 oz (170 g)
• Accuracy: ± 1% Full Scale (at 23 ± 5°C), including linearity, hysteresis, and repeatability.

Measurement Ranges & Resolution:

• Unit: mbar

  • Max Range: 1500 mbar
  • Resolution: 1 mbar

• Unit: Kpa

  • Max Range: 150.0 Kpa
  • Resolution: 0.1 Kpa

• Unit: Pa

  • Max Range: 150,000 Pa
  • Resolution: 100 Pa

• Unit: torr

  • Max Range: 1125 torr
  • Resolution: 1 torr

• Unit: mm Hg

  • Max Range: 1125 mm Hg
  • Resolution: 1 mm Hg

• Unit: micron

  • Max Range: 1,125,000 microns
  • Resolution: 1000 microns

• Unit: In Hg

  • Max Range: 44.30 inch Hg
  • Resolution: 0.02 inch Hg

• Unit: PSI

  • Max Range: 21.75 psi
  • Resolution: 0.01 psi

This portable vacuum meter combines robust construction with high-precision technology, delivering reliable performance wherever your work takes you.
