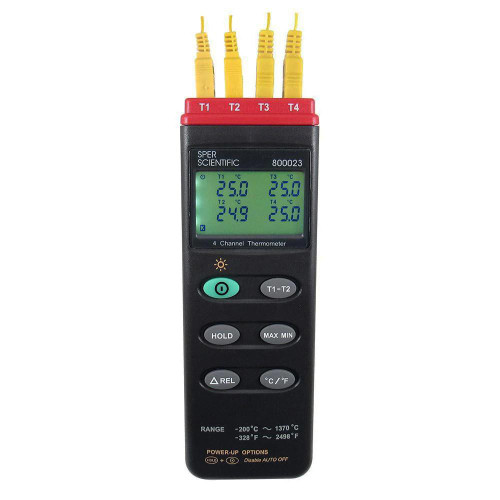

4-Channel Thermometer, Type K, NIST Certified

4-Channel Thermometer, Type K, NIST Certified

The 4-Channel Thermometer, Type K, is a top-tier, portable device designed for professionals who demand precision and reliability. With its NIST certification, you can trust that every reading meets the highest standards of accuracy and traceability, making it ideal for scientific, industrial, and laboratory applications.

Key Features:

• Simultaneous 4-Channel Display: View data from four thermocouple probes at once on a large, easy-to-read, backlit LCD screen.
• NIST Certification: Ensures the thermometer is calibrated to traceable standards set by the National Institute of Standards and Technology (NIST), providing unmatched confidence in your measurements.
• Advanced Functionality: Equipped with auto-ranging, auto power-off, min/max recording, data hold, Δ (T1-T2), and relative functions for versatile measurements.
• High Accuracy: Offers full-scale accuracy of ±0.5% reading + 1ºC / 2ºF.
• Wide Measurement Range: Measures temperatures from -328 to 2498°F (-200 to 1370°C), suitable for a variety of applications.
• High Resolution: Provides 0.1° resolution for measurements under 200°C and 1° for measurements above 200°C.

Calibration and Documentation:

Each unit is calibrated and rigorously tested in-house to ensure it meets or exceeds published specifications. The NIST certification process uses traceable instrumentation and standards, ensuring reliable results.

 Your certified thermometer comes with:

• A unique serial number.
• A certification label for easy identification.
• A comprehensive certification testing report documenting its performance.

Specifications:

• Range:
  • -200 to 200°C: ±0.2% reading + 1°C (0.1°C resolution).
  • 200 to 400°C: ±0.5% reading + 1°C (1°C resolution).
  • 400 to 1370°C: ±0.2% reading + 1°C (1°C resolution).
  • -328 to 2498°F: ±0.3% reading + 2°F (0.1°F resolution for <200°F).
• Numerical Display: Independent 4-digit LCD display for each channel.
• Data Storage: Stores up to 16,000 data points for extended use and analysis.
• Sample Rate: Records data every 3 seconds.
• Operating Conditions:
  • Temperature: 32 to 122°F (0 to 50°C).
  • Humidity: 0 to 80% RH.
  • Max Altitude: Up to 2000 meters.
• Input Protection: Handles up to 60V DC or 24Vrms AC at thermocouple inputs.
• Battery Life: Approx. 100 hours with an alkaline 9V battery.

Built for Durability and Convenience:

The thermometer comes ready to use with two beaded wire probes, a 9V battery, and clear instructions, all packaged in a protective foam-lined case. For extended use, it is compatible with an optional AC Adapter (800003).

Applications:

Perfect for HVAC technicians, industrial engineers, researchers, and anyone requiring precise temperature monitoring in demanding environments. Its NIST certification ensures that it meets the rigorous standards needed for critical applications.

Dimensions: 7¼" × 2½" × 1¼" (184 × 64 × 32 mm)

Weight: 8.4 oz (238 g)

With its advanced features, robust design, and NIST-certified accuracy, the 4-Channel Thermometer, Type K, delivers reliable performance you can count on. Whether you’re in the lab, on-site, or in the field, this thermometer is your trusted partner for precise temperature measurement.
