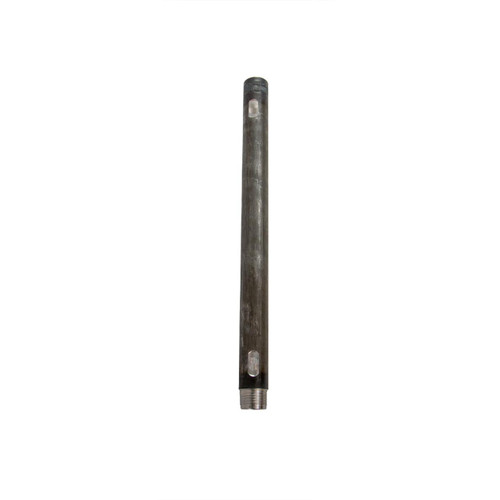

Soggy Bottom Sampler Sampler Tube Upper Extension

Soggy Bottom Sampler Sampler Tube Upper Extension

The Soggy Bottom Sampler Tube Upper Extension is a reliable tool for collecting accurate sediment samples in aquatic environments like rivers, lakes, wetlands, and estuaries. Designed to prevent caving sediment, this manually-driven sampler ensures precise sampling with minimal hassle.

To use, lower the sampler as a dual tube or drive it to the required depth. Once there, remove the inner rods attached to the internal drive tip and add extensions if needed. The internal drive tip is secured in a chamber at the top of the sampler, allowing you to attach the slide hammer and drive it further to collect your sample. After collecting the sample, the rods and sampler can be extracted using a back-hammering technique. For tougher sediments, the optional removal jack and pull cap make rod and sampler removal effortless. The system disassembles easily, granting access to sample liners that can be capped and transported to the lab.

Key features of the Soggy Bottom Sampler include dual o-rings on the internal drive tip to reduce cross-contamination and a core catcher to prevent sediment loss. Its versatility allows for both continuous and discrete sampling to depths of 4 feet.

The sampler kit includes:

• One 4' x 1 ½" O.D. plastic liner
• Two 2' x 1 ½" O.D. plastic liners
• One top metal catcher
• One plastic basket retainer
• Three 3' extensions
• A 30 lb. slide hammer
• Cleaning brushes
• A deluxe padded carrying case for safe storage and transport

Built for professionals in environmental and scientific fields, the Soggy Bottom Sampler offers ease of use, durability, and accurate results, making it an essential tool for sediment sampling.
