product description

U.S. Testing Sieves 8" Diameter Full Height Brass Frame

The U.S. Sieves are a Brass or Stainless steel sieve with a wire mesh screen material also made of either Brass or Stainless steel that are designed to conform to specifications set by the A.S.T.M. (American Society for Testing and Materials). The majority of the sieves shown below have an 8" dia. with 2" depth (1" half-height available), however sieves are also available in diameters of 3” or 12”. Each sieve is made with your choice of the following: brass frame/brass wire cloth, brass frame/stainless wire cloth or stainless frame/stainless cloth. Frames are "Skirted" to nest together. Please contact us for assistance in identification of sieves with half-height, 3" or 12" diameters.

Part numbers can be interpreted as follows:

The mesh size is the first number based on the ASTM size sequence. Next are the two letters which represent: first the type of frame and then the type of cloth/mesh, whether in Brass (B) or Stainless steel (S). Combinations with the frame brass and the mesh stainless steel are also possible. The next number is for the diameter and the last letter is for the height either in Full (F) or Half (H) height. The height of the sieve varies with the diameter. The 8” sieves have a Full height of 2” and a Half height of 1”, where the 12” diameter sieves have a Full height of 4 ¼” and a Half height of 2”.

So a 40BB8F sieve will be 40 mesh, brass frame and brass cloth, in a 8" diameter, and will have a full height of 2 inches.

Another size such as 50SS12F, for example, will be 50 mesh, stainless frame and stainless steel mesh screen with a 12 inch diameter and full height of 4-1/4" overall.

There are additional sizes shown with a different number value. Some sizes are shown with an inch measure rather than the U.S. Sieve series mesh size. These will have the measurement size with the “ (inch) symbol as the first value. The Zero value in the first position are for the frame and skirt ONLY where customers will add their own screen material.

The sizes shown below are in alpha numeric sequence, please scan through the list based on the mesh size you need first and then for the configuration which you need.

We hope this will help you in selecting the proper sieves for your application.

8" Diameter Brass Sieve Models

U.S. Testing Sieves 8" Full Height Brass Frame Brass Mesh

8BB8F: US#8 Brass Sieve Full Height 8in Diameter 8 Mesh
10BB8F: US#10 Brass Sieve Full Height 8in Diameter 10 Mesh
12BB8F: US#12 Brass Sieve Full Height 8in Diameter 12 Mesh
14BB8F: US#14 Brass Sieve Full Height 8in Diameter 14 Mesh
16BB8F: US#16 Brass Sieve Full Height 8in Diameter 16 Mesh
18BB8F: US#18 Brass Sieve Full Height 8in Diameter 18 Mesh
20BB8F: US#20 Brass Sieve Full Height 8in Diameter 20 Mesh
25BB8F: US#25 Brass Sieve Full Height 8in Diameter 25 Mesh
30BB8F: US#30 Brass Sieve Full Height 8in Diameter 30 Mesh
35BB8F: US#35 Brass Sieve Full Height 8in Diameter 35 Mesh
40BB8F: US#40 Brass Sieve Full Height 8in Diameter 40 Mesh
45BB8F: US#45 Brass Sieve Full Height 8in Diameter 45 Mesh
50BB8F: US#50 Brass Sieve Full Height 8in Diameter 50 Mesh
60BB8F: US#60 Brass Sieve Full Height 8in Diameter 60 Mesh
70BB8F: US#70 Brass Sieve Full Height 8in Diameter 70 Mesh
80BB8F: US#80 Brass Sieve Full Height 8in Diameter 80 Mesh
100BB8F: US#100 Brass Sieve Full Height 8in Diameter 100 Mesh
120BB8F: US#120 Brass Sieve Full Height 8in Diameter 120 Mesh
140BB8F: US#140 Brass Sieve Full Height 8in Diameter 140 Mesh
170BB8F: US#170 Brass Sieve Full Height 8in Diameter 170 Mesh
200BB8F: US#200 Brass Sieve Full Height 8in Diameter 200 Mesh
230BB8F: US#230 Brass Sieve Full Height 8in Diameter 230 Mesh
270BB8F: US#270 Brass Sieve Full Height 8in Diameter 270 Mesh
325BB8F: US#325 Brass Sieve Full Height 8in Diameter 325 Mesh
400BB8F: US#400 Brass Sieve Full Height 8in Diameter 400 Mesh
PB8F: Brass Sieve Full Height 8in Diameter Bottom Pan
PB8FX: Brass Sieve Full Height 8in Diameter Bottom Pan W/Extended Rim
0BB8F: Brass Sieve Full Height 8in Diameter Blank Skirt & Frame (Assembled)
0BB8F-U: Brass Sieve Full Height 8in Diameter Blank Skirt & Frame (Unassembled)
BR8F: Blank 8in Diameter Frames
CB8: Brass Cover W/O Ring For U.S. Sieves
CB8W/R: Brass Cover With Ring For U.S. Sieves

U.S. Testing Sieves 8" Full Height Brass Frame Stainless Mesh

.265BS8F: US#.265 Brass Sieve Full Height 8in Diameter Stainless .265 Mesh
.530BS8F: US#.530 Brass Sieve Full Height 8in Diameter Stainless .530 Mesh
1/8"BS8F: US#1/8" Brass Sieve Full Height 8in Diameter Stainless 1/8 Mesh
3/8"BS8F: US#3/8" Brass Sieve Full Height 8in Diameter Stainless 3/8 Mesh
5/8"BS8F: US#5/8" Brass Sieve Full Height 8in Diameter Stainless 5/8 Mesh
1/2"BS8F: US#1/2" Brass Sieve Full Height 8in Diameter Stainless ½ Mesh
1/4"BS8F: US#1/4" Brass Sieve Full Height 8in Diameter Stainless ¼ Mesh
3/4"BS8F: US#3/4" Brass Sieve Full Height 8in Diameter Stainless ¾ Mesh
5/16"BS8F: US#5/15" Brass Sieve Full Height 8in Diameter Stainless 5/15 Mesh
7/16"BS8F: US#7/16" Brass Sieve Full Height 8in Diameter Stainless 7/16 Mesh
7/8"BS8F: US#7/8" Brass Sieve Full Height 8in Diameter Stainless 7/8 Mesh
1.00"BS8F: US#1.00" Brass Sieve Full Height 8in Diameter Stainless 1 Mesh
1 1/4"BS8F: US#1-1/4" Brass Sieve Full Height 8in Diameter Stainless 1¼ Mesh
1 1/2"BS8F: US#1-1/2" Brass Sieve Full Height 8in Diameter Stainless 1½ Mesh
3.5BS8F: US#3.5 8" Brass Sieve Full Height 8in Diameter Stainless 3.5 Mesh
4BS8F: US#4 Brass Sieve Full Height 8in Diameter Stainless 4 Mesh
5BS8F: US#5 Brass Sieve Full Height 8in Diameter Stainless 5 Mesh
6BS8F: US#6 Brass Sieve Full Height 8in Diameter Stainless 6 Mesh
7BS8F: US#7 Brass Sieve Full Height 8in Diameter Stainless 7 Mesh
8BS8F: US#8 Brass Sieve Full Height 8in Diameter Stainless 8 Mesh

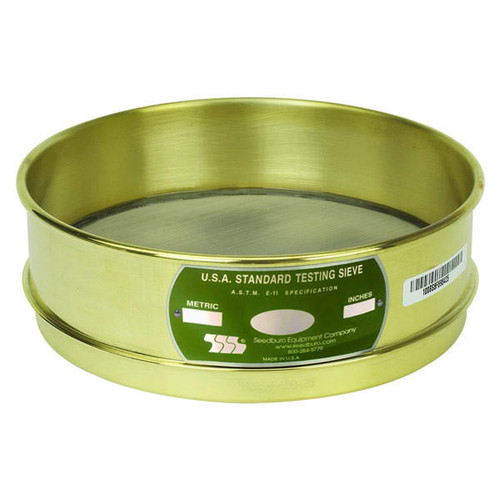

10BS8F: US#10 Brass Sieve Full Height 8in Diameter Stainless 10 Mesh
12BS8F: US#12 Brass Sieve Full Height 8in Diameter Stainless 12 Mesh
14BS8F: US#14 Brass Sieve Full Height 8in Diameter Stainless 14 Mesh
16BS8F: US#16 Brass Sieve Full Height 8in Diameter Stainless 16 Mesh
18BS8F: US#18 Brass Sieve Full Height 8in Diameter Stainless 18 Mesh
20BS8F: US#20 Brass Sieve Full Height 8in Diameter Stainless 20 Mesh
25BS8F: US#25 Brass Sieve Full Height 8in Diameter Stainless 25 Mesh
30BS8F: US#30 Brass Sieve Full Height 8in Diameter Stainless 30 Mesh
35BS8F: US#35 Brass Sieve Full Height 8in Diameter Stainless 35 Mesh
40BS8F: US#40 Brass Sieve Full Height 8in Diameter Stainless 40 Mesh
45BS8F: US#45 Brass Sieve Full Height 8in Diameter Stainless 45 Mesh
50BS8F: US#50 Brass Sieve Full Height 8in Diameter Stainless 50 Mesh
60BS8F: US#60 Brass Sieve Full Height 8in Diameter Stainless 60 Mesh
70BS8F: US#70 Brass Sieve Full Height 8in Diameter Stainless 70 Mesh
80BS8F: US#80 Brass Sieve Full Height 8in Diameter Stainless 80 Mesh
100BS8F: US#100 Brass Sieve Full Height 8in Diameter Stainless 100 Mesh
120BS8F: US#120 Brass Sieve Full Height 8in Diameter Stainless 120 Mesh
140BS8F: US#140 Brass Sieve Full Height 8in Diameter Stainless 140 Mesh
170BS8F: US#170 Brass Sieve Full Height 8in Diameter Stainless 170 Mesh
200BS8F: US#200 Brass Sieve Full Height 8in Diameter Stainless 200 Mesh
230BS8F: US#230 Brass Sieve Full Height 8in Diameter Stainless 230 Mesh
270BS8F: US#270 Brass Sieve Full Height 8in Diameter Stainless 270 Mesh
325BS8F: US#325 Brass Sieve Full Height 8in Diameter Stainless 325 Mesh
400BS8F: US#400 Brass Sieve Full Height 8in Diameter Stainless 400 Mesh
500BS8F: US#500 Brass Sieve Full Height 8in Diameter Stainless 500 Mesh
