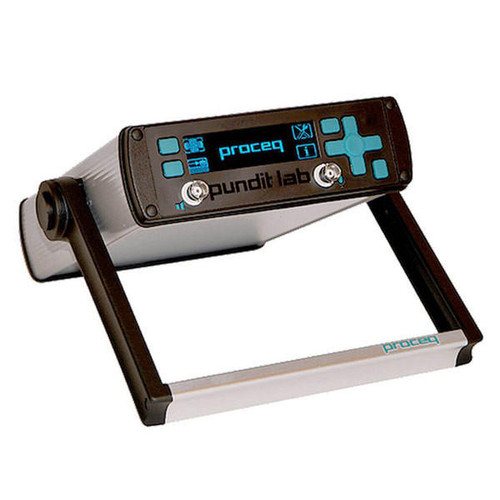

Proceq Pundit Lab+ UPV Instrument without Transducers

Proceq Pundit Lab+ UPV Instrument without Transducers

Pundit Lab+ UPV Instrument

The Pundit Lab+ UPV Instrument is a highly advanced, non-destructive testing device for assessing the quality and integrity of concrete. Sharing identical features with the Proceq Pundit Lab+ UPV Instrument, this version does not include transducers, allowing users to select transducers best suited for their specific applications.

This state-of-the-art instrument offers comprehensive online data acquisition, waveform analysis, and complete remote control over all transmission parameters and data logging functions. A key feature is its integrated gain stage, which intelligently amplifies signals, eliminating the need for an external amplifier even when utilizing extended cables for measurements. To ensure precision, a real-time measurement stamp meticulously records the exact time of each measurement, and an intuitive data review list provides immediate on-site verification on the crisp 3-inch OLED display. The device boasts substantial onboard data storage, capable of capturing over 500 readings. Connectivity is seamless via its USB interface, and the included Pundit Link Analysis software facilitates in-depth analysis or straightforward export to spreadsheet applications. For flexible power options, the instrument can be operated with rechargeable batteries or directly via a PC through its USB cable.

Proceq Pundit Ultrasonic Pulse Velocity (UPV) Instruments are renowned for their accuracy and reliability in evaluating concrete quality. They operate by transmitting and receiving timed ultrasonic energy pulses through the concrete. The time taken for this signal to traverse the concrete provides critical data for determining its homogeneity and integrity. Pulse velocity measurements are invaluable for assessing concrete uniformity, precisely detecting internal cracks and voids, monitoring changes in material properties over time, and establishing dynamic physical characteristics. Furthermore, compressive strength can be estimated using the advanced SONREB (SONic-REBound) method, which combines ultrasonic pulse velocity readings with rebound values obtained from a Schmidt concrete test hammer. The instrument supports various measurement modes, including precise crack depth analysis, pulse velocity determination, surface velocity measurements, robust data logging, and E-modulus calculations. A wide selection of additional transducers is available to customize the instrument for greater depth of penetration or enhanced resolution based on project requirements.

Key Features & Benefits:

• Comprehensive Measurement Modes: Perform transit time, pulse velocity, path length, surface velocity, and accurate crack depth measurements.
• Modulus of Elasticity: Determine the dynamic modulus of elasticity for a deeper understanding of material properties.
• Curing Status Evaluation: Monitor and evaluate the curing process of concrete effectively.
• Advanced Data Analysis: Create SONREB curves, benefit from a real-time measurement time stamp, and conduct on-instrument measurement reviews for immediate insights.
• Enhanced Signal Integrity: Integrated amplifier gain stage eliminates the need for external amplification, especially beneficial when using exponential transducers or long cables.
• User-Friendly Design: Ergonomic and lightweight for comfortable, extended use in various field conditions.

Included Items with the Pundit Lab+ UPV Instrument:

• Pundit Ultrasonic Pulse Velocity Tester Unit
• Durable Carrying Case for secure transport
• Rechargeable Batteries (pre-installed or packaged separately)
• Battery Charger with a versatile USB Cable
• (2) High-quality 1.5m BNC Cables for reliable connections
• A supply of Couplant for optimal transducer contact
• Calibration Rod for accurate setup
• PL-Link Analysis Software for comprehensive data management

Available Accessories (Sold Separately):

• Transducer Sets: A diverse range of transducers is available in multiple frequencies. These are crucial for accommodating different aggregate (grain) sizes and the specific dimensions of the test object. All transducer models are supplied as a set of two.
• Transducer Holder: An essential accessory for performing compound measurements with stability and precision.
• Pundit Lab Carrying Bag: An optional carrying bag designed for enhanced portability and protection of your instrument in the field.

Meets International Standard(s):

• EN 12504-4
• ISO 1920-7:2004
• ASTM C597-02

Technical Specifications:

• Measurement Range: 0.1 – 9999μs
• Resolution: 0.1μs for precise readings
• Display: High-contrast 79 x 21mm passive matrix OLED for clear visibility
• Memory Capacity: Non-volatile internal memory capable of storing over 500 measured values, ensuring data retention.
• Operating Temperature Range: -10° to 60°C (0° to 140°F) for versatile use in various environments.
• Power Supply: (4) AA batteries (rechargeable included, or standard AA can be used).
• Product Dimensions: 6.8 x 2.2 x 8.7in (172 x 55 x 220mm), WxDxH – compact and portable design.
• Estimated Shipping Weight: 3.0lb (1.36kg) – light enough for easy transport.
