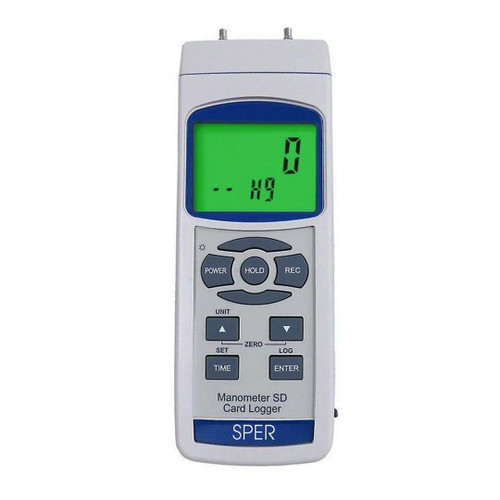

Manometer, 101 PSI

Digital Manometer, 101 PSI with Data Logging to SD Card

Precision Pressure Measurement & Seamless Data Logging for Professionals

The Manometer, Model 850099, is a high-precision digital instrument designed for measuring gauge and differential pressure in non-corrosive and non-ionized air and gas systems. Engineered for accuracy and ease of use, this manometer is an indispensable tool for HVAC technicians, engineers, and anyone requiring reliable pressure data in the field or laboratory.

Effortless Data Management: Gone are the days of manual transcription and complex software. This advanced manometer features innovative SD card data logging, allowing you to record pressure readings along with a precise date and time stamp directly onto standard SD memory cards (just like a digital camera). Enjoy virtually unlimited data storage by simply swapping out full SD cards. Data is effortlessly transferred to your computer by inserting the card into a memory card slot or SD card reader. The pre-formatted Excel-compatible files mean no additional software or specialized cables are needed – upload and analyze your data instantly. Extra SD cards are readily available in various memory sizes to suit your project needs.

Key Features for Enhanced Performance:

• Wide Measurement Range: Capable of measuring up to ±101 PSI (±700 kPa), providing versatility for a broad spectrum of applications.
• Multiple Units: Easily switch between 10 different units of measure, including PSI, In H²O, m H²O, hPa, kPa, In Hg, mbar, mm of Hg, and Kg cm², catering to global standards and specific requirements.
• High Accuracy: Delivers reliable readings with an accuracy of ±2% full scale (FS), ensuring confidence in your measurements.
• User-Friendly Interface: Features a large, easy-to-read backlit LCD display for clear visibility in all lighting conditions.
• Convenient Functions: Includes a push-button zero offset for accurate calibration, Min/Max record to capture peak fluctuations, auto power off to conserve battery life, a low battery indicator, and a data hold function for temporary display lock.
• Durable Design: Built with a sturdy construction and includes a fold-out easel back for hands-free operation.

Ready for Immediate Use: The Manometer comes complete with everything you need to get started: a protective carrying case, six AA batteries, tubing with pipe attachment lugs for various connections, a detailed instruction manual, and an SD card. For continuous power, it supports an optional USB Power Cable 840058 or AC Adapter 840097 (sold separately).

Important Note: This unit is specifically designed for use with non-corrosive and non-ionized air and gases only. It is NOT suitable for use with liquids.

Specifications:

• Dimensions: 7" × 2¾" × 1¾" (178 × 70 × 44 mm)
• Weight: 1 lb. (0.45 kg)
• Model Number: 850099
• Max Pressure: 101 PSI
• Accuracy: ±2% Full Scale (FS)

Measurement Ranges & Resolutions:

• PSI: Range ±29.99 PSI, Resolution 0.01 PSI
• In H²O: Range ±830.0 In H²O, Resolution 0.1 In H²O
• m H²O: Range ±21.0 m H²O, Resolution 0.001 m H²O
• hPa: Range ±2068 hPa, Resolution 1 hPa
• kPa: Range ±206.8 kPa, Resolution 0.1 kPa
• In Hg: Range ±61.0 In Hg, Resolution 0.01 In Hg
• mbar: Range ±2068 mbar, Resolution 1 mbar
• mm of Hg: Range ±1551 mm of Hg, Resolution 1 mm of Hg
• Kg cm²: Range ±2.10 Kg cm², Resolution 0.001 Kg cm²
