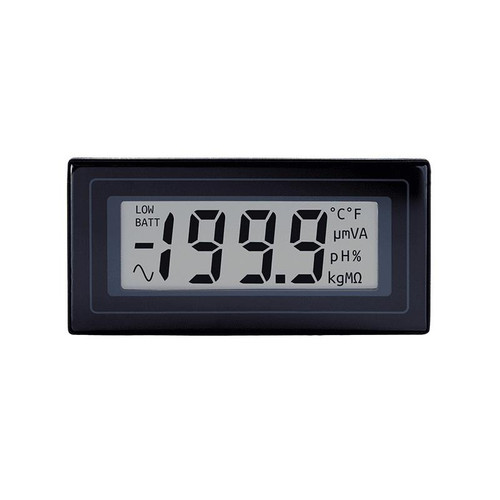

This compact panel meter comes with a 3½ digit LCD display featuring 15mm (0.6”) high digits and a sleek, low-profile bezel for easy mounting. It offers a 200mV d.c. full-scale reading, along with auto-zero, auto-polarity, and programmable decimal points. Designed for convenience, it can be plugged directly into a single-in-line (SIL) socket or panel-mounted using the included snap-in bezel and window.
Specifications
Accuracy (overall error) 0.05 % (typ.) ±1 count
Operating temperature 0 to 50 °C (32 to 122 °F)
Sample rate 3 samples/sec
Supply voltage (V+ to V-) 7.5 to 14 V
Supply current 150 μA
