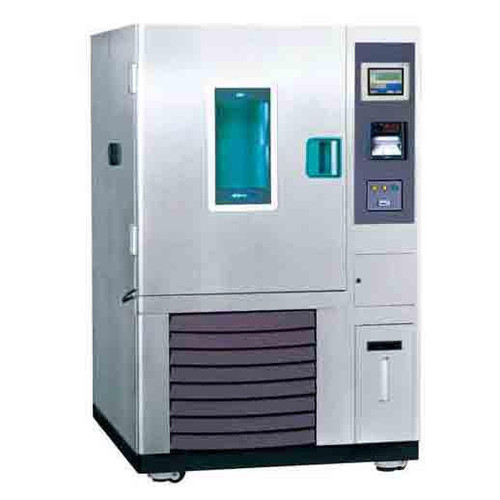

TH-G-180 Temperature and Humidity Chamber, 6.7 cf., 230V

TH-G-180 Temperature and Humidity Chamber, 6.7 cf., 230V

The TH-G-180 Temperature and Humidity Chamber is a cutting-edge solution designed for precise environmental testing. Built with advanced technology and user-friendly features, this chamber ensures reliable performance for both short-term and long-term testing needs. Whether for industrial research, product development, or quality control, the TH-G-180 is engineered to deliver exceptional results.

Key Features

Performance

• Microprocessor PID Control: Ensures accurate temperature and humidity calibration with automatic tuning.
• Wide Temperature and Humidity Range: Operates between -40℃ to 100℃ (-40℉ to 212℉) and 25%RH to 95%RH, accommodating a variety of testing conditions.
• Advanced Insulation System: Optimized insulation prevents heat leakage, ensuring energy efficiency. Even at maximum temperatures, the external surface stays below 60℃.
• Long-Term Testing Efficiency: Features a water recycling and filtering system to reduce water consumption and extend operating time.

Durable Construction

• Air-Tight Sealing: Heat-resistant silicone packing and a two-point door latch create a secure, leak-proof environment.
• Stainless Steel Interior: Corrosion-resistant stainless steel construction ensures durability and easy maintenance.
• Tempered Glass Observation Window: Built-in heating wire prevents condensation, providing clear visibility during tests.
• Casters Included: Easy mobility for installation or relocation.

User Convenience

• Spacious Capacity: With a chamber volume of 189L (6.7 cu. ft.), it accommodates multiple test samples.
• Front Water Tank: Easy access for water maintenance, with an optional direct water supply system for uninterrupted long-term testing.
• Cable Ports: Comes with one standard 50mm (2”) port, with optional additional ports up to 80mm (3.2”).
• Interactive LCD Controller: 5.7-inch color touchscreen with real-time graph displays, built-in SD card drive, and multilingual support (English, Chinese, Korean).
• Programmable Process Controls: Store up to 120 patterns, each with a maximum of 100 segments, for a total of 1200 segments. Supports process times of up to 999 hours, 59 minutes per segment.

Safety Features

• Built-in Alarms: Alerts for overheating, low water levels, empty water tanks, and open doors.
• Automatic Shut-off: System shuts down during overheat conditions for added safety.
• Power Protection: Includes a leakage breaker and overcurrent protection.
• Door Lock Mechanism: Equipped with a secure door lock to prevent unauthorized access.

Energy Efficiency

• Highly optimized insulation system reduces energy consumption without compromising performance.

Refrigeration System

• Single-Stage Refrigeration: Air-cooled condenser with R-507 refrigerant for reliable performance.
• Rapid Heating and Cooling: Reaches 100℃ in 60 minutes and -40℃ in 60 minutes.

Technical Specifications

• Chamber Volume: 189L (6.7 cu. ft.)
• Temperature Range: -40℃ to 100℃ (-40℉ to 212℉ at 60Hz) / -35℃ to 100℃ (-31℉ to 212℉ at 50Hz)
• Humidity Range: 25%RH to 95%RH
• Fluctuation: ±0.3℃, ±0.4%RH at 40℃ / 75%RH
• Variation: ±0.5℃, ±3%RH at 40℃ / 75%RH
• Heating Time: -40℃ to 100℃ in 60 minutes
• Cooling Time: 20℃ to -40℃ in 60 minutes
• Water Supply: 15L (0.53 cu. ft.) cartridge-type portable tank
• Max Load: 20kg (44.1 lbs) per shelf, up to 50kg (110.2 lbs) total
• Interior Dimensions: 1003 × 1139 × 1468 mm (39.5 × 44.8 × 57.8 inches)
• Viewing Window: 200 × 330 mm (7.9 × 13 inches)
• Net Weight: 320 kg (705.5 lbs)
• Interface Ports: RS-232 standard, RS-485 optional
• Electrical Requirements: 230V, 1P, 60Hz, 25.2A

Additional Options

• Wider Glass Door: Wider inner glass door available for enhanced sample monitoring.
• Additional Cable Ports: Optional 50mm or 80mm ports for external probes or wires.
• Direct Water Supply System: Makes long-term testing even more convenient.
• Data Management Software: Simplifies program settings, backup, and recovery of temperature and humidity data.

The TH-G-180 Temperature and Humidity Chamber combines precision, reliability, and user convenience, making it the ideal choice for various testing applications. With advanced safety features, energy efficiency, and a robust design, this chamber is a trusted partner for achieving accurate and consistent environmental test results.
