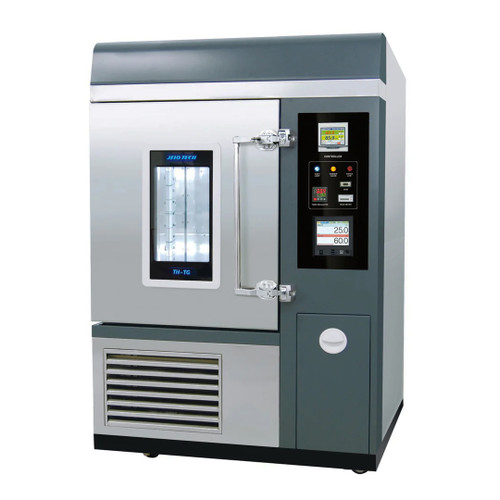

TH-G-1000 Temperature and Humidity Chamber (Low Temp), 1000L

TH-G-1000 Temperature and Humidity Chamber (Low Temp), 1000L

The TH-G-1000 is a high-performance temperature and humidity chamber designed for precise, long-term environmental testing. With a spacious 1000L capacity and a wide operational range, this chamber is engineered for reliability, safety, and user convenience in demanding laboratory and industrial settings.

Key Features & Benefits

• Superior Performance: Utilizing an advanced microprocessor PID control system with automatic tuning and temperature calibration, the TH-G-1000 delivers exceptional stability. The unique design, which places the humidification tank outside the main chamber, ensures stable humidity control and is ideal for extended testing periods.
• Eco-Friendly & Efficient: The chamber is equipped with a water recycling and filtering system that significantly reduces water consumption during long operations. An optimized insulation system enhances energy efficiency, keeping the exterior surface temperature below 60°C even at maximum operating temperatures.
• Robust Construction & Safety: An air-tight door with heat-resistant silicone packing and a two-point latch mechanism prevents heat leakage and ensures a perfect seal. Safety is paramount, with features including a key-locked door, automatic overheat shutoff, low water level alarms, a power leakage breaker, and an open-door alarm.
• User-Centric Design: The interior chamber is built from corrosion-resistant stainless steel. A front-facing, portable water container makes refills simple, and a direct water system connection is available for continuous, long-term tests. Observe samples clearly through the heated, tempered glass door, illuminated by long-lasting LED lighting. A standard 50mm cable port allows for easy integration of external probes and wires.
• Intuitive Control: A 5.7-inch color LCD touchscreen provides a user-friendly interface for setting and monitoring conditions. View operating progress in real-time graph mode and store data effortlessly with the built-in SD card drive. The controller supports English, Chinese, and Korean.

Technical Specifications

• Chamber Volume: 1000 L / 35.3 cu ft
• Temperature Range: -40°C to 100°C (-40°F to 212°F)
• Temperature Fluctuation: ±0.3°C
• Humidity Range: 25% to 95% RH
• Humidity Fluctuation: ±1% RH
• Controller: Programmable 5.7" Color LCD Touchscreen
• Refrigeration System: Mechanical single-stage (air-cooled) with R-507 refrigerant
• Interior Dimensions (WxDxH): 1000 x 800 x 1000 mm / 39.4 x 31.5 x 39.4 in
• Exterior Dimensions (WxDxH): 1503 x 1519 x 1968 mm / 59.2 x 59.8 x 77.5 in
• Max. Load per Shelf: 40 kg / 88.2 lbs
• Interface Port: Standard: RS-232C; Optional: RS-485
• Electrical Requirements: 380V, 3-Phase, 50/60Hz, 12.2A

Programmability

The advanced controller offers extensive programming capabilities, allowing for up to 120 patterns with 100 segments each. Manage your testing protocols easily via the RS-485 communication port (optional) to connect and monitor up to nine units simultaneously with our dedicated software.

The TH-G-1000 provides the precision, durability, and advanced features required for a wide range of applications, from electronics and materials testing to pharmaceutical stability studies.
