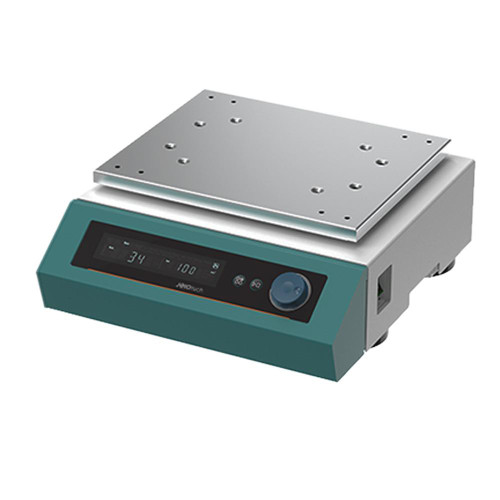

OS-2000 Shaker (Dual Action) ( Orbital), 320×260mm Platform

OS-2000 Dual-Action Shaker: Precision Orbital & Reciprocating Motion

The OS-2000 Shaker is a versatile, high-performance laboratory instrument designed for demanding applications that require both orbital and reciprocating shaking motions. Equipped with a standard 320×260mm platform, this dual-action shaker provides the flexibility needed for everything from delicate cell cultures to vigorous chemical extractions.

Exceptional Performance & Control

• Dual-Action Versatility: Easily switch between orbital and reciprocating motion to accommodate various vessel types and mixing requirements.
• Precision Engineering: Featuring a microprocessor PID controller and shaking speed calibration, the OS-2000 ensures highly accurate and reproducible results.
• Powerful & Quiet: The maintenance-free Brushless DC (BLDC) motor delivers a wide speed range (up to 500 rpm) while maintaining a smooth, quiet, and vibration-free environment.
• Intelligent Workload Management: The "Best Effort Run" function automatically manages RPM to maintain consistent shaking even if the workload slightly exceeds rated capacity.
• Adjustable Amplitude: Comes standard with a 19.1mm (0.8”) amplitude, with a 12.7mm (0.5”) option available to fine-tune the intensity of your agitation.

User-Centric Convenience

• VFD Display: The unique Lab Companion VFD is bright and clear, ensuring parameters are easy to read even from across the lab.
• Automated Positioning: The platform always stops at its original starting position, a critical feature for laboratories utilizing automated dosing or sampling systems.
• Advanced Connectivity: Includes RS-232 and USB ports for data collection and external control. When paired with the LC GreenBox, you can monitor your tests in real-time via a mobile app (LC Connected).
• Flexible Timing: Integrated digital timer allows for precise runs ranging from 1 minute up to nearly 1,000 hours.

Safety & Reliability

• Auto-Restart: Automatically resumes operation after power interruptions to protect long-term experiments.
• Comprehensive Protection: Includes a shaking speed deviation alarm, over-current protection, and a stalled platform check to prevent hardware damage.
• Stability: The low-profile design and balanced weight (22kg) minimize "walking" or sliding on the benchtop during high-speed operation.

Technical Specifications (Model OS-2000)

• Motion Type: Orbital or Reciprocal
• Speed Range: 20 to 500 RPM
• Maximum Load: Supports up to 10kg at 500 RPM; up to 16kg at 300 RPM.
• Platform Dimensions: 320 x 260 mm (12.6" x 10.2")
• Overall Dimensions: 354 x 388 x 146 mm (13.9" x 15.3" x 5.7")
• Net Weight: 22 kg (48.5 lbs)
• Electrical requirements (120V, 50 / 60Hz) 0.6A

Ideal Applications: The OS-2000 is perfect for microbiology, proteomics, and general chemistry labs requiring consistent temperature-independent mixing, solubility studies, and cell aeration.
