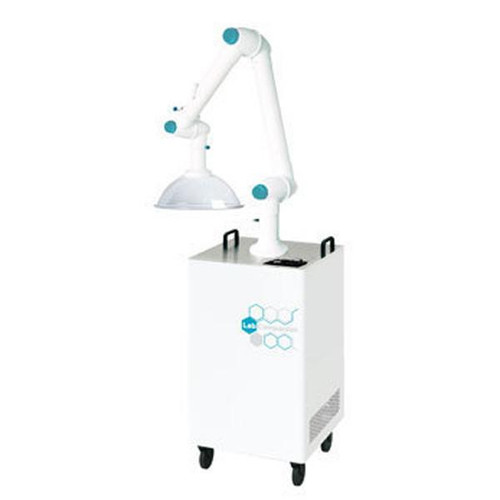

EFS-33-50S Single-Hole Extraction Filter System, 50mm / 2.0in

EFS-33-50S Single-Hole Extraction Filter System

The EFS-33-50S is a compact and versatile single-hole extraction filter system designed to safeguard your lab environment. Its thoughtful design prioritizes both safety and convenience, making it an essential addition to any modern laboratory.

Structural and Functional Features

• Space-Efficient Design: With a compact footprint and a low height of just 650 mm (25.6 inches), the EFS-33-50S maximizes your workspace. It can be conveniently placed on a benchtop or tucked away under a table without obstructing your workflow.
• Intuitive Airflow Control: Easily manage extraction power with a user-friendly control panel that provides an intuitive display of the fan level. The system delivers a powerful maximum airflow of 240 m³/h to efficiently capture fumes and particulates at the source.
• Enhanced Safety with BLDC Motor: The system is powered by a high-durability, spark-free Brushless DC (BLDC) motor. This advanced motor technology ensures safer use with volatile chemicals and flammable substances while offering a long operational lifespan.
• Customizable Filtration: Tailor the system to your specific experimental needs by selecting from a range of optional filters. This flexibility ensures optimal removal of the contaminants present in your environment.
• Versatile Arm and Hood Options: The unit can be configured with either a single or dual arm, with various arm diameters and hood types available to suit your application and workspace layout.

User Convenience Features

• Extended Filter Lifespan: A pre-filter is built into the system to capture larger particles, significantly extending the life of your main HEPA and carbon filters and reducing long-term operating costs.
• Dual-Filter Capability: Depending on the materials used, you can install up to two filters simultaneously for multi-stage purification. For example, combine a HEPA filter to remove fine dust and aerosols with a carbon filter to neutralize harmful gases and odors.
• Effortless Mobility: The unit is equipped with soft, high-quality wheels, allowing it to be moved smoothly around the lab. Integrated brakes ensure it can be securely fixed in place once positioned.
• Safety Alerts: An integrated notification system alerts you when the fan speed is too low, ensuring consistent and effective extraction performance at all times.

Technical Specifications

• Model: EFS-33-50S
• Adaptable Arm: Includes one Φ50 mm (2.0 inch) arm
• Maximum Airflow Rate: 240 m³/h
• Typical Noise Level: ≤ 60 dB
• Electrical Requirements: 230V, 50/60Hz, 1.5A
• Dimensions (W x D x H): 460 x 460 x 650 mm / 18.1 x 18.1 x 25.6 inches
• Net Weight: 65 kg / 143.3 lbs
