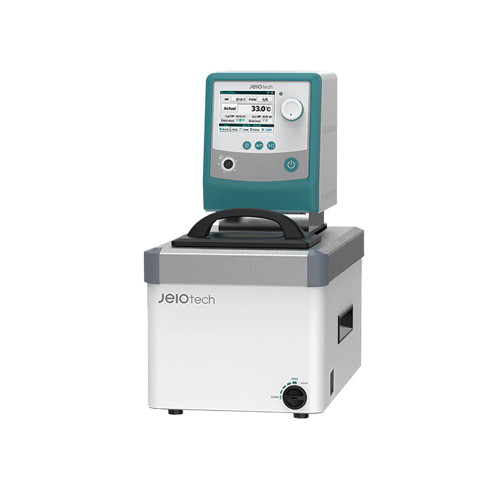

CW3-05P Heating Bath Circulator (5L)

CW3-05P Heating Bath Circulator (5L)

The CW3-05P Heating Bath Circulator is a high-performance, 5-liter laboratory instrument designed for precise temperature control and sample incubation. Engineered for reliability and ease of use, it combines advanced programming capabilities with robust safety features, making it an essential tool for a wide range of scientific applications. Its compact and durable design ensures it delivers consistent performance even under demanding conditions.

Key Features and Benefits

Advanced Programmable Control

• Multi-Step Programming: Easily create complex thermal profiles with up to 10 programs, each with 10 programmable steps. Set times for each step up to 99 hours and 59 minutes for long-term experiments.
• Intuitive Touch Display: A vibrant, full-color touchscreen provides a user-friendly interface for simple operation, real-time monitoring, and quick setting adjustments.
• External Equipment Integration: A digital I/O function allows seamless connection and control of external devices, enhancing the versatility of your lab setup.

Innovative Structural Design

• Reduced Evaporation: Includes a standard low-heat conductivity bath cover designed to minimize solution evaporation at high temperatures, conserving your samples and solutions.
• Space-Efficient Footprint: Its compact design saves valuable benchtop space without compromising on performance or capacity.
• Built for Durability: Constructed from high-quality materials, the unit offers excellent durability for repeated use, even at sustained high temperatures. The bath interior and top are made of corrosion-resistant stainless steel for easy cleaning and maintenance.
• Versatile Circulation: Features both internal circulation for uniform temperature within the bath and an external circulation option to control the temperature of external equipment.
• User-Friendly Mobility: Integrated handles on the body make it easy to move and position the unit. A convenient drain valve simplifies the process of emptying the bath solution.
• Stable Operation: Rubber feet are included to ensure the product remains stable and vibration-free during operation.

Adjustable Pumping Power

• 5-Speed Pump Control: Easily adjust the circulation pump speed through five levels with a simple interface, allowing you to optimize flow for your specific application, from gentle circulation for delicate samples to powerful flow for external systems.

Uncompromising Safety

• Patented Overheating Protection: Equipped with a top-rated, patented overheating protection system (KR 10-0397583) to safeguard both the instrument and your valuable samples.
• Multiple Safety Alerts: The system actively monitors for temperature sensor abnormalities and over-temperature conditions. If an error occurs, detailed information is displayed on screen and an audible alarm sounds.
• Controller Lock Function: Prevents accidental or unauthorized changes to your set parameters during a run.
• Component Protection: The internal heater, sensor, and pump are safely isolated by covering plates to prevent damage and ensure user safety.
• Low-Level Detection: A low-level limiter notifies you when the bath solution is running low, preventing the heater from running dry.

Enhanced User Convenience

• Precision Temperature Calibration: Calibrate the temperature at up to three different points for highly accurate and reliable thermal control across the entire operating range.
• Auto-Tuning Function: The controller's auto-tuning feature optimizes PID parameters, ensuring minimal temperature overshoot and rapid stabilization.
• Preset Temperatures: Save and recall up to three frequently used temperature settings for quick and repeatable experiments.
• Flexible Timer: A Wait On/Off timer can be set for up to 999 hours and 59 minutes for delayed starts or timed shutdowns.
• Remote Monitoring: Stay connected to your experiment from anywhere with the LC Connected mobile app, which allows for real-time monitoring (requires optional LC GreenBox).
• Data Management: Built-in software allows for convenient remote control and data logging when connected to a PC.
• Power-Failure Recovery: In the event of a power outage, the unit can be set to automatically resume operation with the previous settings once power is restored.

Technical Specifications

General

• Category Number: AAH52742U
• Weight: 29 lbs
• Dimensions: 19 × 12 in

Performance

• Bath Volume: 5 Liters / 0.2 cubic feet
• Working Temperature Range: Ambient +10°C to 150°C / Ambient +18°F to 302°F
• Temperature Stability: ±0.05°C / ±0.09°F
• Heat-Up Time (to 70°C / 158°F): 24 minutes

Dimensions

• Bath Opening (W x L): 150 x 99 mm / 5.9 x 3.9 inches
• Bath Depth (D): 160 mm / 6.3 inches
• Exterior (W x L x H): 228 x 395 x 424 mm / 9.0 x 15.6 x 16.7 inches
• Net Weight: 12.5 kg / 27.6 lbs

Electrical

• Requirements: 120V, 60Hz
• Current: 8.6A
