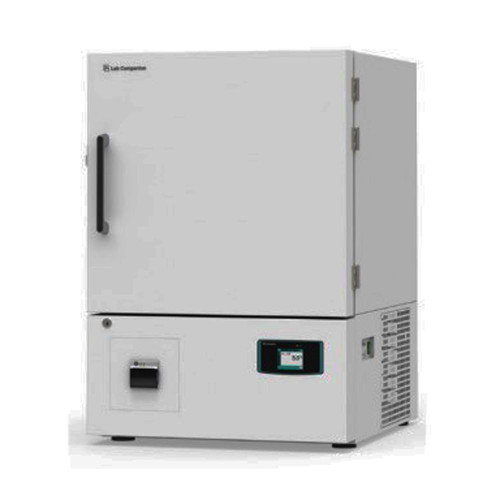

CLG-150 Laboratory Refrigerator, Solid Door, 230V, 156/5.5 (L/cu ft)

CLG-150 Laboratory Refrigerator, Solid Door, 230V, 156L/5.5 cu ft

The CLG-150 Laboratory Refrigerator is a compact yet highly efficient solution for cold storage needs in laboratories, research centers, and healthcare facilities. Designed for reliability and convenience, it meets stringent standards for the safe storage of pharmaceuticals and other temperature-sensitive materials.

Key Features

Temperature Stability

• Provides stable temperature control with a range of 2°C to 10°C (35.6°F to 50°F).
• Excellent insulation and a tightly sealed structure for consistent performance.
• Calibration function helps minimize temperature differences.

Durable and Hygienic Design

• Interior made of corrosion-resistant stainless steel for long-term durability.
• Clean construction eliminates condensation on outer walls, ensuring a pristine working environment.
• Magnetic door packing ensures smooth opening and closing.

Space Efficiency

• Space-saving design with the option for double stacking (specific for the 150 model).
• Comes with height-adjustable, strong wire shelves that can hold up to 26 kg (57.3 lbs) per shelf.

Convenience

• JEIO TECH’s exclusive controller ensures stable and precise temperature management.
• Easy operation with a clear VFD display and touch key interface.
• Displays both set and actual temperatures simultaneously for easy monitoring.
• Auto defrost function eliminates the need for manual defrosting.
• Ø50 mm cable port available for connecting external devices (optional, except for 70 and 150 models).

Safety Features

• Controller lock function prevents accidental changes in settings.
• Equipped with a door lock and key for enhanced security.
• Notifications for temperature deviations (high and low alerts).
• Adheres to the ICH Guideline Q1A (R2) for temperature fluctuation and variation.
• Suitable for GMP audits with optional LC DataKeeper software that complies with 21 CFR Part 11 standards.

Mobility

• Casters for easy movement and installation (available for models other than CLG-150).

Technical Specifications

Model: CLG-150

Temperature Range: 2°C to 10°C (35.6°F to 50°F)

Chamber Volume: 156 L / 5.5 cu ft

Dimensions:

• Interior (W x D x H): 550 × 580 × 490 mm (21.7 × 22.8 × 19.3 inches)
• Exterior (W x D x H): 683 × 791 × 870 mm (26.9 × 31.1 × 34.4 inches)

Net Weight: 100 kg / 220.5 lbs

Shelving Options:

• Wire Shelves (Slide): 4 max
• Drawer Shelves (Slide): 3 max

Electrical Requirements: 230V, 60Hz, 2A

Additional Information

• Fully compliant with pharmaceutical cold storage requirements.
• Ideal for long-term operation with minimal fluctuations in temperature.
• Optional features such as integrated fluorescent lighting (not available for CLG-150) and digital locks enhance usability and security.
• Designed to support daily operations in pharmaceutical, clinical, and research settings.

The CLG-150 is the perfect choice for compact yet reliable laboratory refrigeration, ensuring your samples, medications, and materials are stored safely and efficiently. Whether you're running a startup lab or managing a clinical research facility, this refrigerator delivers consistent performance to meet your needs.
