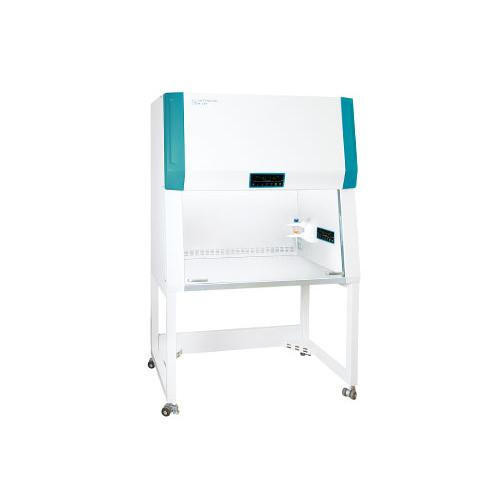

Lab Companion BC-11H Clean Bench

Lab Companion BC-11H Clean Bench: Performance and Efficiency

Our vertical laminar flow clean bench is designed for superior performance and efficiency, providing an optimal environment for your work.

• Advanced HEPA Filtration: The ISO Class 4 (US Class 10) HEPA filter guarantees maximum protection against cross-contamination. It efficiently removes 99.99% of particulates 0.3 μm and larger, ensuring a sterile workspace. The filter is leak-tight and meets US Federal Standard 209E. (Note: The average lifespan of the HEPA filter is approximately three years, depending on laboratory conditions).
• Automated Airflow Control: A sophisticated digital airflow rate sensor (microprocessor) automatically adjusts the airflow speed, maintaining a constant velocity. This not only ensures consistent performance but also extends the life of the HEPA filter.
• Superior Laminar Flow: Our exclusive diffusing muffler structure creates a high-quality, uniform laminar flow, minimizing turbulence within the workspace.
• Enhanced Filter Longevity: A high-quality polyester fiber pre-filter traps larger particles, significantly increasing the life of the main HEPA filter while maintaining minimal pressure loss.
• Quiet Operation: Engineered for a comfortable working environment, the unit operates at a noise level of less than 65dB.

Convenience and Smart Features

This clean bench incorporates several intelligent features designed to streamline your workflow and enhance user convenience.

• Interlocking Smart Door System: This patented safety feature (registration 10-1451382) automatically manages lighting and sterilization. When the sash door is opened during a UV sterilization cycle, the UV lamp turns off, and the fluorescent lamp and blower activate to protect the user from UV exposure.
• Dual Digital Displays: Two displays (one internal, one external) provide constant monitoring of critical conditions like velocity, temperature, and humidity, allowing for easy checks without disturbing ongoing work.
• Filter Condition Monitoring: A digital differential pressure sensor makes it easy to verify the HEPA filter's condition, providing a clear indication of when a replacement is necessary.
• UV Lamp Maintenance Alert: The system monitors UV light intensity. If it drops below 80% of its optimal level, a warning lamp automatically activates to signal that it's time to replace the UV lamp.
• Easy Maintenance: The cartridge-type filters are easily accessible from the front for simple replacement. The work surface is made of highly durable, rust-free, and easy-to-clean grade 304 stainless steel.
• Additional Features: A magnetic board on the inner left side is perfect for holding memos and small tools, and a digital timer (up to 59 mins, 59 secs) allows for precise control of UV sterilization cycles.

Uncompromising Safety

Safety is paramount in our design, with multiple features to protect both the user and the samples.

• UV Protection: The door is made from UV-blocking, impact-resistant tempered glass.
• Sash Height Alarm: An alarm will activate if the sash is opened beyond the recommended height during operation, preventing potential contamination of samples.
• Automatic UV Cut-off: For user protection, the UV lamp automatically turns off if the sash is opened during a sterilization cycle.
• Secure & Flexible Front Door: The smoothly sliding front door can be stopped at any height, ensuring user safety and allowing for easy transport of equipment into the workspace.
• Electrical Safety: The unit includes built-in protection against over-current.

Technical Specifications

• Air Flow Type: Vertical laminar flow
• Airflow Velocity: 0.4 m/s / 79 fpm
• Main Filter: HEPA (99.99% efficiency at 0.3 ㎛)
• Pre-filter: Polyester Fibers
• Lamps: UV: 30W x 1ea (254 nm); Fluorescent: 30W x 2ea
• Illumination Intensity: > 650 Lux
• Exterior Dimensions (with stand): 1435 x 620 x 1860 mm / 56.5 x 24.4 x 73.2 in
• Exterior Dimensions (without stand): 1435 x 620 x 1150 mm / 56.5 x 24.4 x 45.3 in
• Interior Dimensions: 1245 x 585 x 670 mm / 49.0 x 23.0 x 26.4 in
• Net Weight (body): 185 kg / 407.9 lbs
• Net Weight (body + stand): 215 kg / 474 lbs
• Noise Level: < 65 dB
• Electrical Outlets: 230V socket
• Electrical Requirements: 120V, 60Hz, 1ph, 3.27 A
