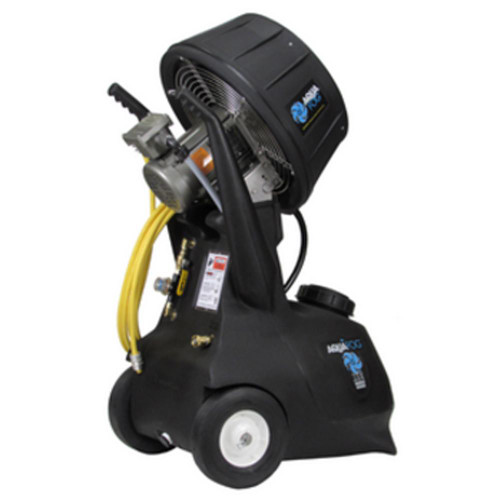

Jaybird Humidifier Mobile Fogging System, Explosion-Proof Motor

Meet the Jaybird HRSM-EXP: The Ultimate Mobile Fogging System for Hazardous Environments

Tackle your toughest jobs with the Jaybird Humidifier Mobile Fogging System (HRSM-EXP). Engineered for performance and safety, this powerful unit features an explosion-proof motor, making it the definitive choice for use in explosion-prone locations and hazardous environments.

Unmatched Power and Versatility

The HRSM-EXP is our most powerful atomizer, built to withstand harsh conditions in a wide range of commercial and industrial applications. It generates enormous fogging capability, producing a fine mist of tiny particles (5-25 microns) that evaporate quickly for maximum efficiency. Whether you need humidification, evaporative cooling, or chemical fogging, this system delivers.

Key Features:

• Explosion-Proof Motor: Industrial-grade motor specifically designed and certified for use in hazardous locations, ensuring maximum safety. A specialized drainage port allows condensation to escape, extending the motor's life.
• High-Volume Fogging: With a net fogging output of up to 13.5 GPH and a propulsion distance of 30-35 feet, the HRSM-EXP can cover large areas with ease.
• Nozzle-Free Atomizer: Our exclusive fan-blade assembly provides superior performance and nozzle-free reliability, eliminating clogs and reducing maintenance.
• Robust & Mobile Design: The system comes standard with a rugged 18-gallon wheeled supply tank, making it easy to move wherever you need it.
• Durable Construction: Built with stainless-steel fabrication and UV-stabilized polymers, this unit is designed to endure temperatures from 33°F to 160°F and is suitable for both indoor and outdoor use.
• Simple Operation: Connects to a standard garden hose and operates without high-pressure pumps. A quarter-turn ball valve provides simple, precise control over the fogging output. The system can be operated continuously or automated with a separate hazardous-duty controller.

Applications:

The Jaybird HRSM-EXP is ideal for a variety of demanding applications, including:

• Humidification: Effectively manage humidity levels in manufacturing facilities, agriculture, and horticulture.
• Evaporative Cooling: Provides powerful cooling of up to 109,350 Btu/h for outdoor events, spot cooling in warehouses, and agricultural settings.
• Chemical Fogging: Safely apply chemical treatments, disinfectants, or pesticides.

SST Plumbing Option for Corrosive Chemicals

For applications involving highly corrosive chemicals, the optional SST version is available. This model comes with all-stainless-steel plumbing components (304 grade) pre-installed, replacing the standard brass fittings for enhanced durability and chemical resistance.

Technical Specifications:

• Dimensions: 21" W x 25.5" L x 44" H
• Weight: 88 lbs (empty)
• Power: 1/2 HP Motor, 7.8 amps @ 115V 60Hz
• Max. Fogging Output: 13.5 GPH
• Tank Capacity: 18 Gallons
• Noise Level: 72 dB(A) at 10 ft
• Propulsion Distance: 30 - 35 ft
• Country of Origin: Made in the USA

Proudly made in the USA, the Jaybird HRSM-EXP is the complete, reliable solution for high-performance fogging in challenging environments.
