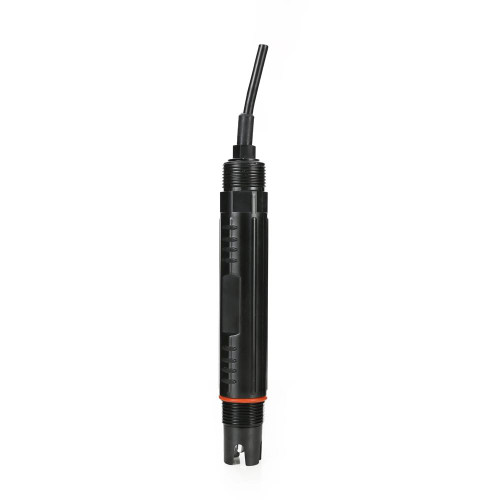

Industrial Wastewater PH Sensor, 0-14pH, 32 to 140F Temp Range

Robust Industrial pH Sensor: Unmatched Accuracy & Durability for Challenging Wastewater Applications

Engineered for the demanding conditions of industrial wastewater, our pH sensor offers unparalleled accuracy, reliability, and extended service life. Designed to operate flawlessly in corrosive, high-turbidity, and chemically aggressive environments, this sensor is a critical component for effective process control, environmental compliance, and optimized water treatment.

Key Features and Enhanced Performance:

• Exceptional Durability and Low Maintenance: The electrode features a world-class solid dielectric and a large PTFE liquid junction. This advanced, non-blocking design effectively resists electrode poisoning and clogging by suspended solids, common in wastewater. The result is significantly reduced maintenance requirements, fewer calibrations, and more stable, reliable readings over time.
• Extended Service Life in Harsh Environments: A sophisticated long-distance reference diffusion channel drastically enhances the sensor's durability. This design protects the reference system from contamination, allowing the sensor to withstand exposure to a wide range of harsh chemicals and high-stress industrial conditions for a considerably longer period.
• Rugged, Integrated Construction: Encased in a robust PPS/PC material, the sensor boasts superior chemical resistance and mechanical strength. Its integrated design includes 3/4NPT threaded pipes on both ends, facilitating direct and straightforward installation into reaction tanks or pipelines without the need for a separate protective jacket. This innovative approach not only simplifies installation but also significantly reduces overall setup time and costs.
• Reliable Long-Distance Signal Transmission: Equipped with a high-quality, low-noise cable, this sensor ensures pristine signal integrity. It can maintain accurate and interference-free pH measurements over distances exceeding 20 meters, providing reliable data even when the monitoring equipment is located far from the measurement point.
• High Precision and Rapid Response: Designed for precision, the sensor delivers high accuracy, quick response times, and excellent repeatability across its full measurement range. It requires no additional dielectric, further simplifying operation while ensuring consistent and reliable data for critical process decisions. The silver ion Ag/AgCl reference electrode further contributes to its stable and precise potential.
• Versatile Installation: The sensor's design allows for flexible installation, accommodating both lateral and vertical mounting in various reaction tanks, open channels, or pipe systems, ensuring adaptability to diverse industrial configurations. Its 3-in-1 profile integrates temperature compensation and solution grounding for comprehensive monitoring.

Technical Specifications:

• Measuring Range: 0-14 pH
• Temperature Range: 32-140°F (0-60°C)
• Compressive Strength: 0.6 MPa
• Slope: ≥96％
• Zero Point Potential: E0=7 pH±0.3
• Internal Impedance: 150-250 MΩ (at 25℃)
• Material: Natural Tetrafluoro (PTFE)
• Profile: 3-in-1 Electrode (Integrating temperature compensation and solution grounding)
• Installation Size: Upper and Lower 3/4NPT Pipe Thread
• Connection: Low-noise cable direct output
• Applications: Ideal for various industrial sewage treatment processes, environmental protection applications, and general water treatment monitoring where precision and durability are paramount.
