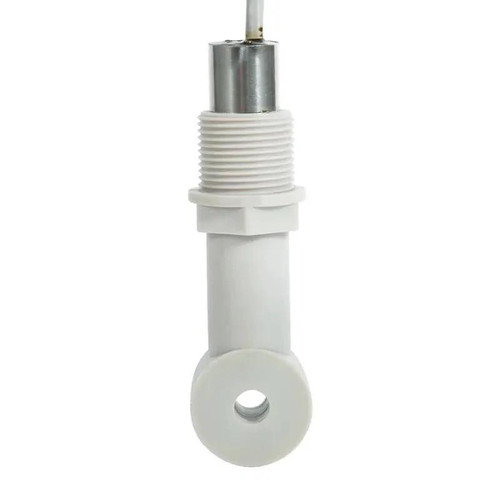

Inductive Acid-Alkaline Concentration Sensor, PP, Rated 140F/60C

Inductive Acid-Alkaline Concentration Sensor, PP, Rated to 140°F (60°C)

This advanced digital conductivity sensor is purpose-built to measure and digitize conductivity, salinity levels, and the concentration of acids and alkalis with superior accuracy and reliability. Designed for challenging environments, it is ideal for applications involving corrosive chemicals, wastewater monitoring, and industrial processes.

Key Features:

• Exceptional Chemical Resistance:

Engineered with chemical-resistant polypropylene (PP) materials that prevent polarization and resist grime buildup, making it perfect for harsh chemical environments such as fuming sulfuric acid and other highly acidic applications.

• High Accuracy & Stability:

Optimized for precise acid and alkali concentration measurements, including HNO3, H2SO4, HCl, and NaOH. The sensor exhibits stable performance over time, even in demanding conditions.

• Advanced Signal Processing:

Equipped with an integrated signal processing circuit and embedded MCU ASIC, the sensor eliminates traditional limitations like clogging and polarization errors. This ensures consistent and reliable data transfer.

• Temperature Compensation:

Includes a temperature compensation feature with direct digital output of temperature data, ensuring consistent accuracy across a wide temperature range.

• Factory-Calibrated:

Comes pre-calibrated with permanently stored calibration values, reducing setup time and ensuring continuous reliability without the need for frequent recalibration.

• Flexible Installation Options:

Compatible with various mounting brackets and bulkhead structures, the sensor offers easy adaptability for a wide range of applications, from industrial processes to environmental monitoring.

Applications:

• Chemical Manufacturing Facilities
• Wastewater Treatment Plants
• River Water Monitoring
• Power Plants and Industrial Cooling Systems

Technical Specifications:

• • Material: Polypropylene (PP) construction for durability in harsh environments
  • Operating Temperature: 0–60°C (32–140°F)
  • Measurement Range:
    • HNO3: 0–25.00%
    • H2SO4: 0–25.00%
    • HCl: 0–20.00%
    • NaOH: 0–15.00%
  • Accuracy: ± (+25 μS to measure the value of 0.5%)
  • Output Options: 4-20mA or RS485 for seamless integration with existing systems
  • Maximum Pressure: 1.6 MPa (16 bar)
  • Large Aperture Design: Ensures long-term stability and robust performance by preventing clogs and maintaining consistent operation.

Why Choose This Sensor?

This inductive conductivity sensor sets a new standard in chemical and environmental monitoring by combining advanced technology with robust construction. Whether you're working in a high-acid environment, a wastewater plant, or an industrial facility, this sensor delivers reliable, accurate results you can depend on.
