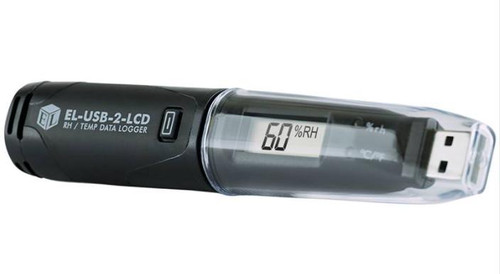

High Accuracy Temperature and Humidity Logger

Optional NIST calibration is performed at +25C @ 50% RH.

• LCD display shows high/low and last readings
• Humidity/Temp USB data logger
• Calculated dew point
• Free configuration software
• User-selectable alarm thresholds

This standalone data logger measures and stores up to 16,379 relative humidity and 16,379 temperature readings over 0 to 100%RH and -35 to +80°C (-31 to +176°F) measurement ranges. The user can easily set up the logger and view downloaded data by plugging the data logger into a PC’s USB port and using the supplied software. Relative humidity, temperature and dew point (the temperature at which water vapour present in the air begins to condense) data can then be graphed, printed and exported to other applications. The high contrast LCD can show a variety of temperature and humidity information. At the touch of a button, the user can cycle between the current temperature and humidity, along with the maximum and minimum stored values for temperature and humidity. The data logger is supplied complete with a long-life lithium battery, which can typically allow logging for up to 1 year.

• Alarm:  User-selectable alarm thresholds
• Battery Life: Up to 1 year
• Brand: Lascar
• Capabilities: Temperature, Humidity
• Connection Interface: USB
• Connectivity: USB
• Display: LCD – shows high/low and last readings
• Function: Monitoring, Temperature, Humidity
• Industry: Healthcare, Food Service, Museums, Hospitality and Leisure, Horticulture
• Is Data Logger: No
• Power Source: Long-life lithium battery
• Model: EL-USB-2-LCD+
• Recording Capacity: 16,379

SPECIFICATIONS:

Measuring Range

-35°C to 80°C (-31°F to 176°F) & 0 to 100%RH

Display

High contrast LCD, with two and a half digit temperature and humidity display function

Function

Monitoring, Temperature, Humidity

Recording Capacity

16,379

Data Logging Interval

User selectable between 10 seconds and 12 hours

Battery

Long-life Lithium Battery

Battery Life

2 years (at 25°C and 1 minute logging rate, LCD on)

Working Ambient Temperature

-35 to +80°C (-31 to +176°F)

Display Size

20mm x 10mm

Product Size

126 x 25 x 22mm (4.96 x 0.98 x 0.86”)
