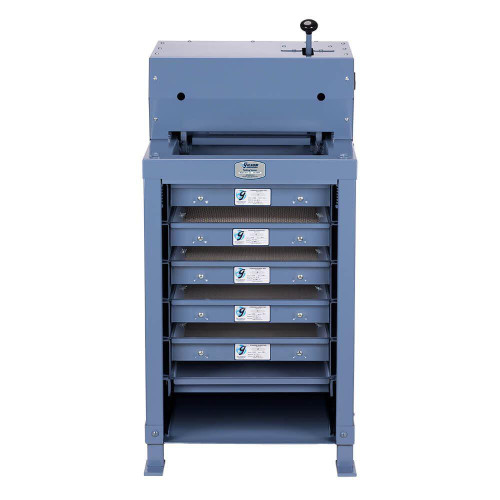

Gilson TS-1 Testing Screen, Hydraulic, 220V

Gilson TS-1 Testing Screen, Hydraulic, 220V

Gilson Testing Screens: Reliable & Efficient Particle Size Analysis for Coarse Materials

Gilson Testing Screens provide the ultimate solution for accurately determining particle size in large samples of aggregates, slag, ores, and other coarse materials. Designed for high performance and durability, these robust screens handle batch sizes of up to 1 cubic foot (28.3L) or more, making them ideal for laboratories and industries focused on material testing. They deliver precise results in just 6–10 minutes, depending on the material type, by separating samples into six distinct fractions.

Versatile Applications & Superior Performance

Gilson Testing Screens are specifically optimized for testing mineral aggregates within the particle size range of 4in (101mm) to No.4 (4.75mm). However, with additional options and accessories, they can also be used to test finer or specialized materials, making them a versatile tool for a variety of applications. Whether you’re working with construction aggregates, mining materials, or industrial byproducts, these screens ensure accurate and repeatable results every time.

All Testing Screen models share the same high-performance design but differ slightly in terms of clamping systems, safety features, tray capacity, and user conveniences. This flexibility allows you to choose the model that best fits your specific lab or testing requirements.

Key Features of Gilson Testing Screens

• High Throughput: Capable of processing large samples up to 1 cubic foot (28.3L), ideal for labs handling high volumes of material.
• Rapid Testing: Processes samples in 6–10 minutes, depending on material type, ensuring fast results.
• Wide Particle Size Range: Suitable for materials from 4in (101mm) down to No.4 (4.75mm), with accessories available for finer materials.
• Robust Construction: The enclosed drive mechanism ensures safe operation, while the heavy-duty design guarantees durability and long-term reliability.
• User-Friendly Design: Features a manual hydraulic pump for quick and secure clamping of screen trays, along with a simple On/Off switch for easy operation.

Safety & Durability

The drive mechanism is fully enclosed and powered by a 1/2hp capacitor motor with overload protection, ensuring both safety and consistent performance. Gilson Testing Screens are designed to be bolted to a concrete or rigid floor system for maximum stability during operation. The vertical vibration motion ensures thorough material agitation for precise separations.

Screen Trays & Accessories

Independent, removable Screen Trays and Dustpans are sold separately and are compatible with both Gilson Testing Screens and Test-Master models. The trays feature replaceable screen cloths, available in various opening sizes to meet ASTM E11 and ISO 565 specifications. For coarser testing materials, punched steel plates are also available. Each TS-1 Testing Screen model accommodates six tray slots, which hold five Screen Trays plus one dustpan.

Enhanced Convenience with Advanced Features

Optional accessories, such as the Digital Lab Timer, can be added to improve convenience and testing repeatability. For even greater functionality, the TS-4 Testing Screen model integrates a digital timer/controller for seamless, hands-free operation.

TS-1 Gilson Testing Screen: A Closer Look

The TS-1 model is ideal for laboratories with consistent particle size testing needs. It features a quick-acting manual hydraulic pump for fast clamping and releasing of trays, along with a sturdy, compact design for reliable operation.

Specifications for TS-1:

• Particle Size Range: 4in to No.4 (101mm–4.75mm)
• Screen Tray Capacity: 5 Screen Trays + 1 Dustpan
• Maximum Sample Volume: 1 cubic foot (28.3L)
• Motion/Agitation: Vertical vibration
• Mounting Capability: Must be bolted to the floor
• Power Requirements: 220V, 50Hz
• Dimensions: 23x31x43in (584x787x1,092mm), WxDxH

Why Choose Gilson Testing Screens?

Gilson Testing Screens are engineered to provide reliable and efficient particle size analysis for a range of coarse materials. Whether you’re working in construction, mining, or industrial processing, these screens are built to deliver precise, repeatable results while ensuring operator safety and ease of use. With their durable construction, user-friendly features, and optional accessories, Gilson Testing Screens are an essential tool for any lab or facility focused on material testing.
