Precision Splitter (0.25in Chute Width)

Precision Splitter (0.25in Chute Width)

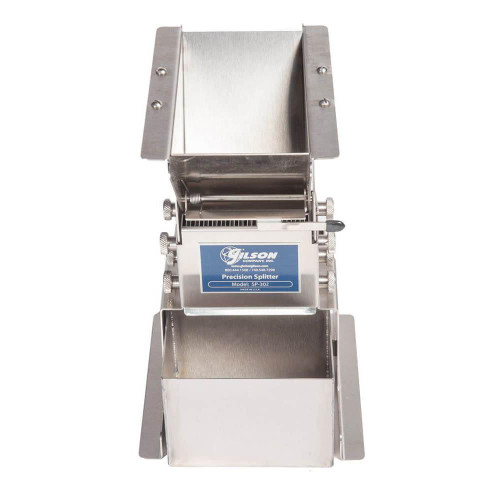

The Gilson SP-302 Precision Splitter is engineered to accurately and rapidly divide granular materials and fine powders, ensuring the creation of truly representative samples for meticulous laboratory analysis. As a single-stage, riffle-type splitter, it leverages a gate-controlled hopper and precision-engineered, fixed-width chutes to deliver superior accuracy and repeatable results, minimizing the potential for sample bias.

When a sample is loaded into the hopper, it can be spread evenly across the top before the easy-flip gate is released. Upon release, the material flows down and is precisely divided in half by the sixteen 0.25in (6.4mm) chutes, set at a steep 45° angle to ensure consistent flow and prevent material from getting trapped. The divided portions are collected cleanly in two stainless steel receptacles positioned directly beneath the chutes.

Constructed entirely from heavy-gauge, non-magnetic Type 304 stainless steel, the SP-302 is built for durability, corrosion resistance, and a long service life. This high-quality construction also plays a crucial role in preventing sample contamination, making it ideal for applications where sample purity is paramount. The design incorporates enclosed side panels to effectively control airborne dust, minimizing the loss of fine particles and protecting the operator. For maintenance and to prevent cross-contamination between samples, the unit disassembles quickly and easily. All components are fully autoclavable for sterilization.

Key Features:

• Robust Construction: Built with 100% heavy-gauge Type 304 stainless steel for corrosion resistance, enhanced durability, and to safeguard against sample contamination.
• Precision Splitting: Features a fixed-chute design with sixteen 0.25in (6.4mm) chutes set at a 45° angle, ensuring accurate, reproducible sample division.
• Controlled Loading: The gate-controlled hopper allows the sample to be loaded completely and distributed evenly before the split begins.
• Dust Control: Integrated side panels contain dust and reduce the loss of fine materials during operation.
• Easy Maintenance: Designed for quick disassembly, making cleaning simple and efficient. All parts are autoclavable.
• Standards Compliance: Fully compliant with multiple testing standards, including ASTM C702/702M, B215, and AASHTO T 248, R 76.

Included Items:

• Gilson SP-302 Precision Splitter with 0.25in Chutes
• Two (2) Stainless Steel Sample Pans

Specifications:

• Maximum Particle Size: 0.09in (2.2mm)
• Hopper Capacity: 61in³ (1L)
• Number of Chutes: 16
• Chute Width: 0.25in (6.4mm)
• Chute Angle: 45°
• Product Dimensions (WxDxH): 8.8 x 7.4 x 12in (223 x 188 x 305mm)
• Estimated Shipping Weight: 15.0lb (6.80kg)
• Meets Standards: AASHTO T 248, AASHTO R 76, ASTM B215, ASTM C702/702M
